Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

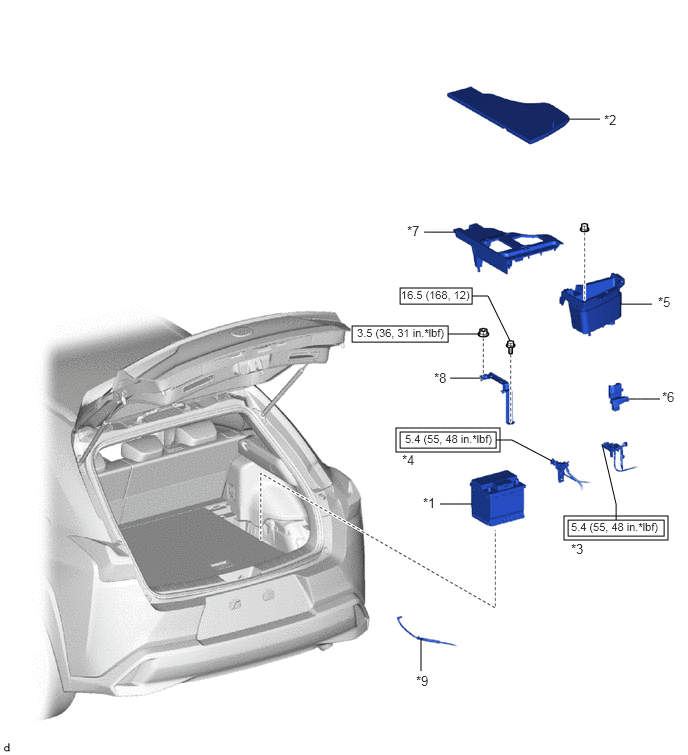

| *1 | AUXILIARY BATTERY | *2 | NO. 2 DECK BOARD SUB-ASSEMBLY |
| *3 | POSITIVE AUXILIARY BATTERY TERMINAL | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| *5 | DECK FLOOR BOX RH | *6 | BATTERY TERMINAL CAP |
| *7 | LUGGAGE COMPARTMENT TRIM BOX | *8 | BATTERY CLAMP SUB-ASSEMBLY |
| *9 | AUXILIARY BATTERY HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
