Check Bus 2 Lines for Short Circuit [10/2019 - 07/2022]: Procedure
- CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the No. 3 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.

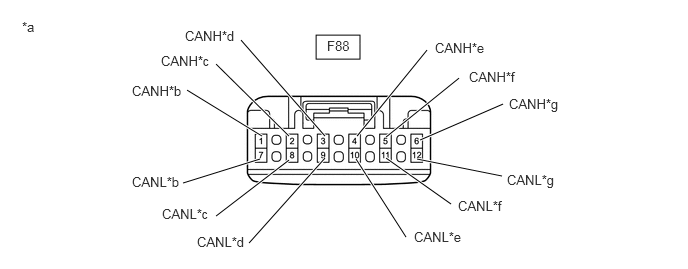

*a Front view of wire harness connector
(to No. 3 CAN Junction Connector)*b to No. 6 CAN Junction Connector *c to Central Gateway ECU (Network Gateway ECU) *d to Rear Hybrid Motor Control Assembly (for AWD) *e to Inverter with Converter Assembly *f to Vehicle Approaching Speaker Controller *g to Brake Booster with Master Cylinder Assembly - - Standard Resistance
Tester Connection Condition Specified Condition Connected to F88-1 (CANH) - F88-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 6 CAN junction connector F88-2 (CANH) - F88-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Central gateway ECU (network gateway ECU) F88-3 (CANH) - F88-9 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Rear hybrid motor control assembly*1 F88-4 (CANH) - F88-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Inverter with converter assembly F88-5 (CANH) - F88-11 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Vehicle approaching speaker controller F88-6 (CANH) - F88-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Brake booster with master cylinder assembly - *1: for AWD
Result
Result Proceed to OK A NG (Line to central gateway ECU (network gateway ECU)) B NG (Line to No. 6 CAN junction connector) C NG (Line to ECU or sensor) D
Result:
A
REPLACE NO. 3 CAN JUNCTION CONNECTOR
Result:
C
See step 3
Result:
D
See step 5
Result:
B
See step 2
- CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the F61 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition F88-2 (CANH) - F88-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to REMOVAL [10/2018 - 07/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 6 CAN JUNCTION CONNECTOR)
- Reconnect the F88 No. 3 CAN junction connector.
- Disconnect the No. 6 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector)*b to No. 3 CAN Junction Connector *c to ECM *d to Hybrid Vehicle Control ECU Standard Resistance
Tester Connection Condition Specified Condition Connected to F93-9 (CANH) - F93-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 3 CAN junction connector F93-10 (CANH) - F93-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω ECM F93-11 (CANH) - F93-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Hybrid vehicle control ECU Result
Result Proceed to OK A NG (Line to No. 3 CAN junction connector) B NG (Line to ECM) C NG (Line to ECU or sensor) D
Result:
A
REPLACE NO. 6 CAN JUNCTION CONNECTOR
Result:
B
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 6 CAN JUNCTION CONNECTOR)
Result:
D
See step 5
Result:
C
See step 4
- CHECK FOR SHORT IN CAN BUS LINES (NO. 6 CAN JUNCTION CONNECTOR - ECM)
- Disconnect the A36 ECM connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition F93-10 (CANH) - F93-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM. Refer to REMOVAL [10/2018 - 07/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - ECM)
- CHECK FOR SHORT IN CAN BUS LINES (ECU OR SENSOR)
- Reconnect all wire harness connectors.
- Disconnect the connector that includes terminals CANH and CANL from the ECU or sensor to which the short circuited branch line is connected.
Refer to TERMINALS OF ECU [10/2019 - 08/2021] , or refer to TERMINALS OF ECU [08/2021 - 07/2022]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition F61-18 (CA4H) - F61-17 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω *a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))HINT:
- If the resistance becomes normal (between 54 and 69 Ω) when the connector is disconnected from the ECU or sensor, there may be a short in the ECU or sensor.
- If the resistance does not become normal when the connector is disconnected from the ECU or sensor, check for a short in the wire harness and repair or replace the wire harness or connector if necessary.
Result
Proceed to OK NG
Result:
OK
REPLACE ECU OR SENSOR
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
