Parts Location [08/2021 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

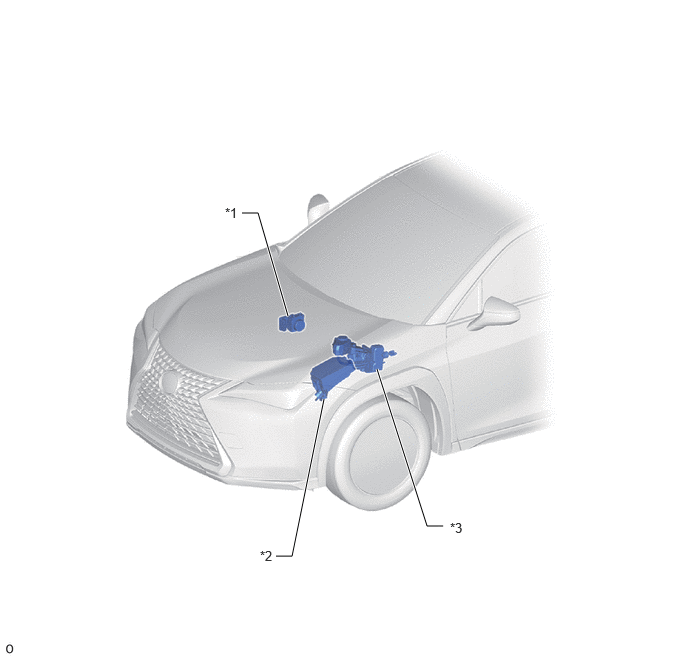

| *1 | BRAKE ACTUATOR ASSEMBLY - PARKING BRAKE ECU |
*2 | NO. 1 ENGINE ROOM RELAY BLOCK - EPB NO. 1 FUSE |
| *3 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
- | - |

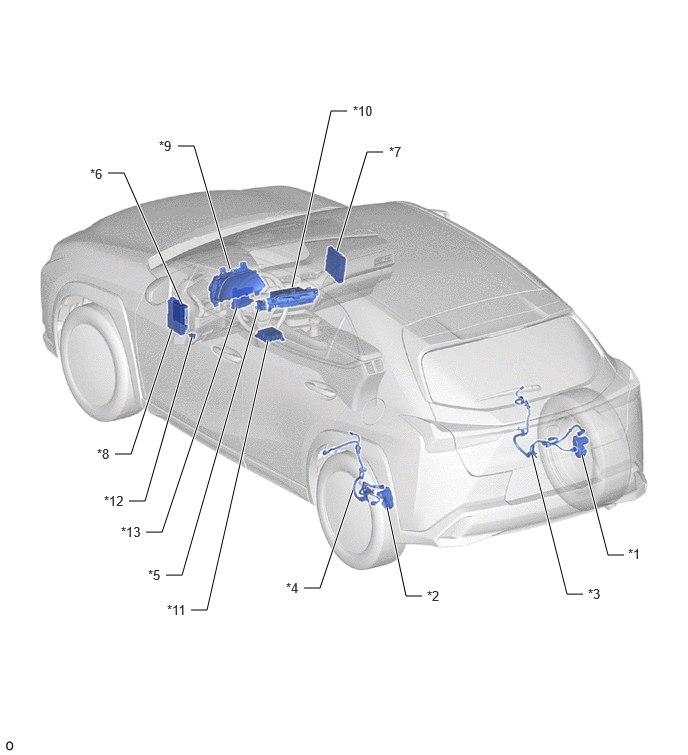

| *1 | PARKING BRAKE ACTUATOR ASSEMBLY RH | *2 | PARKING BRAKE ACTUATOR ASSEMBLY LH |
| *3 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | *4 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *5 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | HYBRID VEHICLE CONTROL ECU | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE |
| *9 | COMBINATION METER ASSEMBLY | *10 | RADIO RECEIVER ASSEMBLY |
| *11 | ACCELERATION SENSOR (AIRBAG ECU ASSEMBLY) | *12 | DLC3 |
| *13 | AIR CONDITIONING AMPLIFIER ASSEMBLY | - | - |
