Hybrid Vehicle Control ECU Communication Stop Mode [10/2018 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the hybrid vehicle control ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F60-21 (CA1H) - F60-8 (CA1L)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
   F60-7 (CA3P) - F60-20 (CA3N)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

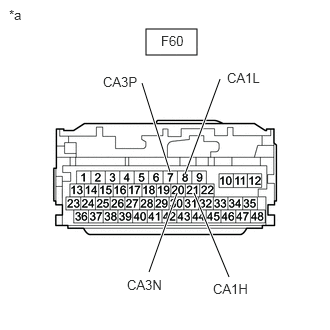

   *a	Front view of wire harness connector (to Hybrid Vehicle Control ECU)

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (HYBRID VEHICLE CONTROL ECU)

Result:

OK

See step  2

1. Disconnect the hybrid vehicle control ECU connector.
2. Reconnect the cable to the negative (-) auxiliary battery terminal.
3. Measure the voltage according to the value(s) in the table below.

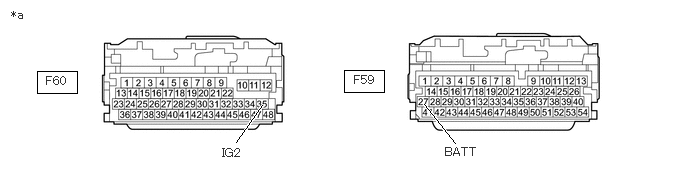

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to Hybrid Vehicle Control ECU)

   -

   -

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   F59-27 (BATT) - Body ground	Power switch off	11 to 14 V
   F60-35 (IG2) - Body ground	Power switch on (IG)	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

Result:

OK

See step  3

1. Check the ECU power source circuit.

   Refer to ECU Power Source Circuit [10/2018 - ]

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [10/2018 - 07/2022]  , or refer to  REMOVAL [07/2022 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
