Headlight ECU RH Communication Stop Mode [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN BUS LINES (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH BRANCH LINE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the no. 1 headlight ECU sub-assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A16-24 (CANH) - A16-23 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

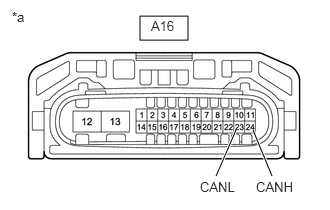

      GTY793225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly RH)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH)

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A16-12 (GND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      GTY793218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly RH)
    2. Reconnect the cable to the negative (-) auxiliary battery terminal.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A16-4 (IG) - Body ground Power switch on (IG) 11 to 14 V
      A16-13 (ECUB) - Body ground Power switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
