Headlight ECU LH Communication Stop Mode [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN BUS LINES (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH BRANCH LINE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the no. 1 headlight ECU sub-assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

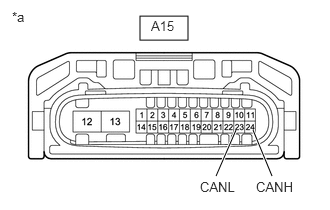

      GTY793217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly LH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A15-24 (CANH) - A15-23 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH)

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      GTY793220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly LH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A15-12 (GND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) auxiliary battery terminal.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A15-4 (IG) - Body ground Power switch on (IG) 11 to 14 V
      A15-13 (ECUB) - Body ground Power switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
