Installation [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 1 INTEGRATION RELAY

Connect the 2 connectors.

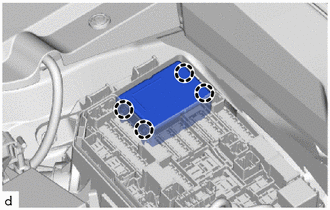

Engage the claws to install the No. 1 integration relay.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 1 RELAY BLOCK COVER

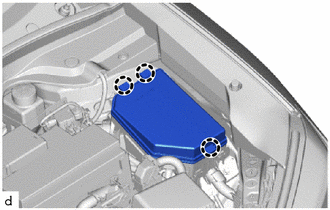

Engage the claws to install the No. 1 relay block cover.

CONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [10/2018 - ]

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [07/2022 - ]
