Inspection [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT NO. 1 INTEGRATION RELAY (for Gasoline Model)

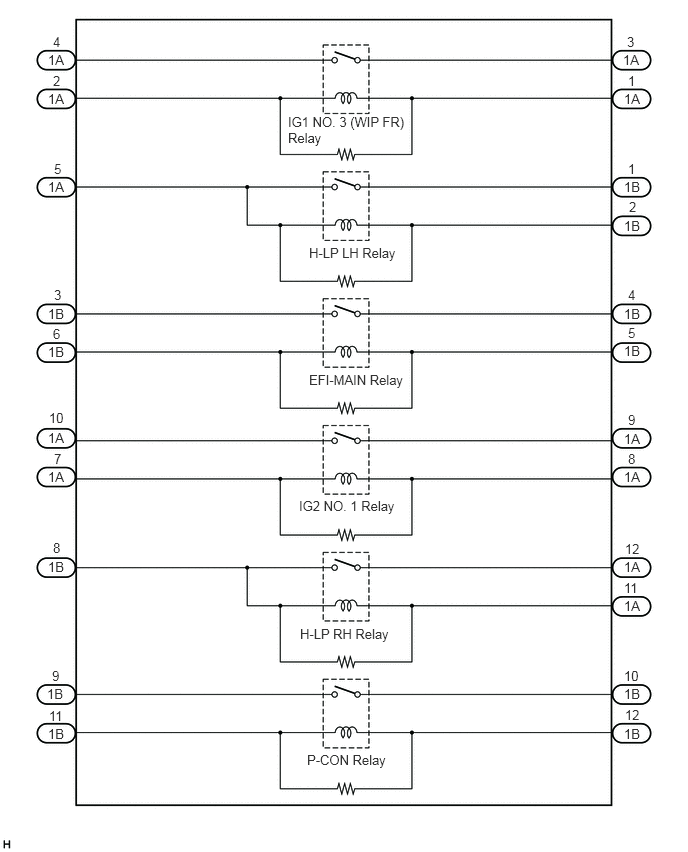

    GTY793253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. IG1 NO. 3 (WIP FR) RELAY:
      1. Measure the resistance according to the value(s) in the table below.

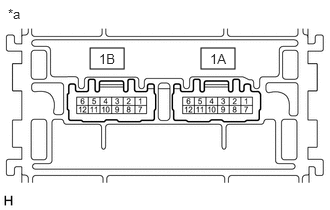

        GTY552296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1A-4 - 1A-3 Auxiliary battery voltage not applied between terminals 1A-2 and 1A-1 10 kΩ or higher
        Auxiliary battery positive (+) → 1A-2
        Auxiliary battery negative (-) → 1A-1        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

    2. H-LP LH RELAY:
      1. Measure the resistance according to the value(s) in the table below.
        GTY552296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1A-5 - 1B-1 Auxiliary battery voltage not applied between terminals 1A-5 and 1B-2 10 kΩ or higher
        Auxiliary battery positive (+) → 1A-5
        Auxiliary battery negative (-) → 1B-2        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

    3. EFI-MAIN RELAY:
      1. Measure the resistance according to the value(s) in the table below.
        GTY552296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1B-3 - 1B-4 Auxiliary battery voltage not applied between terminals 1B-5 and 1B-6 10 kΩ or higher
        Auxiliary battery positive (+) → 1B-5
        Auxiliary battery negative (-) → 1B-6        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

    4. IG2 NO. 1 RELAY:
      1. Measure the resistance according to the value(s) in the table below.
        GTY552296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1A-10 - 1A-9 Auxiliary battery voltage not applied between terminals 1A-7 and 1A-8 10 kΩ or higher
        Auxiliary battery positive (+) → 1A-7
        Auxiliary battery negative (-) → 1A-8        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

    5. H-LP RH RELAY:
      1. Measure the resistance according to the value(s) in the table below.
        GTY552296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1B-8 - 1A-12 Auxiliary battery voltage not applied between terminals 1B-8 and 1A-11 10 kΩ or higher
        Auxiliary battery positive (+) → 1B-8
        Auxiliary battery negative (-) → 1A-11        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

    6. P-CON RELAY:
      1. Measure the resistance according to the value(s) in the table below.
        GTY552296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1B-9 - 1B-10 Auxiliary battery voltage not applied between terminals 1B-11 and 1B-12 10 kΩ or higher
        Auxiliary battery positive (+) → 1B-11
        Auxiliary battery negative (-) → 1B-12        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

  2. INSPECT NO. 1 INTEGRATION RELAY (for HV Model)
    GTY793254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. IG1 NO. 3 (WIP FR) RELAY:
      1. Measure the resistance according to the value(s) in the table below.
        GTY830053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        2A-4 - 2A-3 Auxiliary battery voltage not applied between terminals 2A-2 and 2A-1 10 kΩ or higher
        Auxiliary battery positive (+) → 2A-2
        Auxiliary battery negative (-) → 2A-1        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

    2. H-LP LH RELAY:
      1. Measure the resistance according to the value(s) in the table below.
        GTY787786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)

        Standard Resistance

        Tester Connection Condition Specified Condition
        2A-5 - 2B-1 Auxiliary battery voltage not applied between terminals 2A-5 and 2B-2 10 kΩ or higher
        Auxiliary battery positive (+) → 2A-5
        Auxiliary battery negative (-) → 2B-2        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

    3. EFI-MAIN RELAY:
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2B-3 - 2B-4 Auxiliary battery voltage not applied between terminals 2B-5 and 2B-6 10 kΩ or higher
        Auxiliary battery positive (+) → 2B-5
        Auxiliary battery negative (-) → 2B-6        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

        GTY787786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)
    4. IG2 NO. 1 RELAY:
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2A-10 - 2A-9 Auxiliary battery voltage not applied between terminals 2A-7 and 2A-8 10 kΩ or higher
        Auxiliary battery positive (+) → 2A-7
        Auxiliary battery negative (-) → 2A-8        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

        GTY787786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)
    5. H-LP RH RELAY:
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2B-8 - 2A-12 Auxiliary battery voltage not applied between terminals 2B-8 and 2A-11 10 kΩ or higher
        Auxiliary battery positive (+) → 2B-8
        Auxiliary battery negative (-) → 2A-11        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

        GTY787786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)
    6. P-CON RELAY:
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2B-9 - 2B-10 Auxiliary battery voltage not applied between terminals 2B-11 and 2B-12 10 kΩ or higher
        Auxiliary battery positive (+) → 2B-11
        Auxiliary battery negative (-) → 2B-12        		 Below 1 Ω

        If the result is not as specified, replace the No. 1 integration relay.

        GTY787786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (No. 1 Integration Relay)
