Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

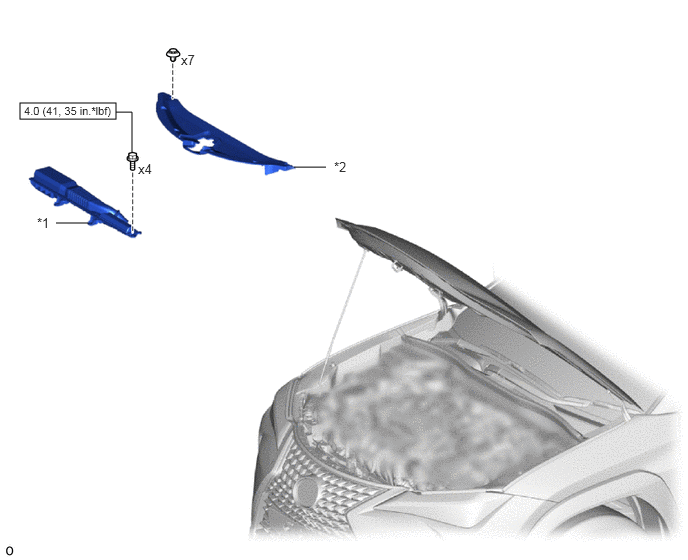

| *1 |
NO. 1 AIR CLEANER INLET |
*2 |
RADIATOR SUPPORT OPENING COVER |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) |
*2 |
ENGINE WIRE |
| *3 |
INTAKE MANIFOLD |
*4 |
INTAKE MANIFOLD STAY |
| *5 |
NO. 1 FUEL VAPOR FEED HOSE |
*6 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *7 |
NO. 3 WATER BY-PASS HOSE |
*8 |
NO. 3 WATER BY-PASS PIPE |
| *9 |
VACUUM HOSE |
*10 |
NO. 3 FUEL VAPOR FEED HOSE |
| *11 |
WATER BY-PASS HOSE |
*12 |
WIRE HARNESS CLAMP BRACKET |
| *13 |
NO. 2 WATER HOSE CLAMP BRACKET |
*14 |
NO. 2 FUEL DELIVERY GUARD |
| *15 |
NO. 1 EGR PIPE SUB-ASSEMBLY |
*16 |
EGR VALVE ADAPTER GASKET |
| *17 |
EGR INLET GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
