Removal [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT FLOOR COVER LH

Remove the 2 bolts and 3 clips, and disengage the 6 clamps to remove the front floor cover LH from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Clip

REMOVE FRONT FLOOR COVER RH
HINT:

Use the same procedure as for the LH side.

REMOVE FRONT FLOOR CENTER BRACE

Remove the 12 bolts and 3 front floor center braces from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TAIL EXHAUST PIPE ASSEMBLY

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Remove the 2 bolts and 2 compression springs and disconnect the tail exhaust pipe assembly from the front exhaust pipe assembly (TWC: Rear Catalyst).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A
*B	Type B

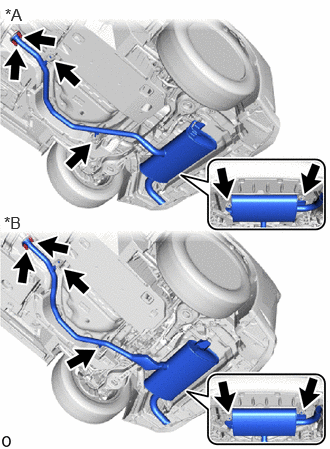

Remove the tail exhaust pipe assembly from the 4 exhaust pipe supports.
Remove the exhaust pipe gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).

REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Disconnect the No. 2 air fuel ratio sensor connector.

Disengage the clamp.

Remove the 2 bolts and 2 compression springs and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst).

Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the 2 exhaust pipe supports.
Remove the exhaust pipe gasket from the exhaust manifold (TWC: Front Catalyst).

REMOVE NO. 2 AIR FUEL RATIO SENSOR
Refer to REMOVAL [10/2018 - ]
