Check Bus 4 Line for Short to GND [08/2021 - 07/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 CAN JUNCTION CONNECTOR)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the No. 7 CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY807736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 CAN Junction Connector)
      *b to No. 4 CAN Junction Connector
      *c to Central Gateway ECU (Network Gateway ECU) *d to Hybrid Vehicle Control ECU
      *e to Tire Pressure ECU and Receiver *f to ECM
      *g to Occupant Detection ECU *h to Brake Booster with Master Cylinder Assembly
      *i to Brake Actuator Assembly - -

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      F94-1 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher No. 4 CAN junction connector
      F94-11 (CANL) - F58-4 (CG)
      F94-2 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Central Gateway ECU (Network Gateway ECU)
      F94-12 (CANL) - F58-4 (CG)
      F94-3 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Hybrid Vehicle Control ECU
      F94-13 (CANL) - F58-4 (CG)
      F94-4 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Tire Pressure ECU and Receiver
      F94-14 (CANL) - F58-4 (CG)
      F94-5 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher ECM
      F94-15 (CANL) - F58-4 (CG)
      F94-6 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Occupant Detection ECU
      F94-16 (CANL) - F58-4 (CG)
      F94-7 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Brake Booster with Master Cylinder Assembly
      F94-17 (CANL) - F58-4 (CG)
      F94-9 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Brake Actuator Assembly
      F94-19 (CANL) - F58-4 (CG)

      Result

      Result Proceed to
      OK A
      NG (Line to central gateway ECU (network gateway ECU)) B
      NG (Line to No. 4 CAN junction connector) C
      NG (Line to ECU or sensor) D

    Result:

    REPLACE NO. 7 CAN JUNCTION CONNECTOR

    Result:

    See step  3

    Result:

    See step  4

    Result:

    See step  2

  2. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the F61 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

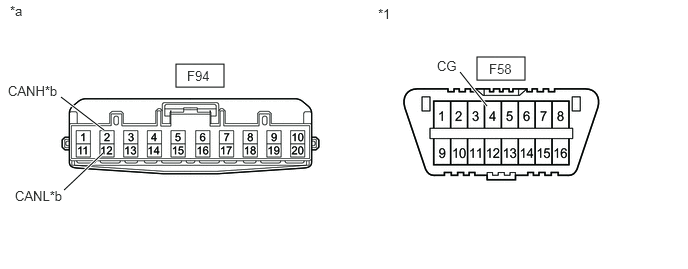

      GTY834414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 CAN Junction Connector)
      *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      F94-2 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F94-12 (CANL) - F58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  3. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 CAN JUNCTION CONNECTOR)
    1. Disconnect the F89 No. 4 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

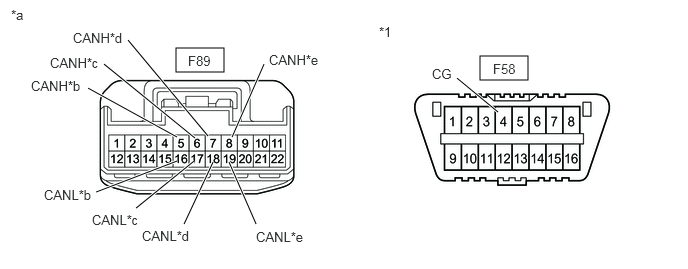

      GTY779551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 4 CAN Junction Connector)
      *b to No. 7 CAN Junction Connector
      *c to Airbag ECU Assembly *d to Power Steering ECU with Motor Assembly
      *e to Steering Sensor - -

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      F89-5 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher No. 7 CAN junction connector
      F89-16 (CANL) - F58-4 (CG)
      F89-6 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Airbag ECU Assembly
      F89-17 (CANL) - F58-4 (CG)
      F89-7 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Power Steering ECU with Motor Assembly
      F89-18 (CANL) - F58-4 (CG)
      F89-8 (CANH) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Steering Sensor
      F89-19 (CANL) - F58-4 (CG)

      Result

      Result Proceed to
      OK A
      NG (Line to No. 7 CAN junction connector) B
      NG (Line to ECU or sensor) C

    Result:

    REPLACE NO. 4 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 4 CAN JUNCTION CONNECTOR - NO. 7 CAN JUNCTION CONNECTOR)

    Result:

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE (ECU OR SENSOR)
    1. Reconnect all wire harness connectors.
    2. Disconnect the connector that includes terminals CANH and CANL from the ECU or sensor to which the bus line shorted to GND is connected.

      Refer to TERMINALS OF ECU [08/2021 - 07/2022]

    3. Measure the resistance according to the value(s) in the table below.
      GTY837100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))
      - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      F61-22 (CA2H) - F58-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-7 (CA2L) - F58-4 (CG)

      HINT:

      • If the resistance changes to 200 Ω or higher when the connector is disconnected from the ECU or sensor, there may be a short in the ECU or sensor.
      • If the resistance does not become normal when the connector is disconnected from the ECU or sensor, check for a short to ground in the wire harness and repair or replace the wire harness or connector if necessary.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECU OR SENSOR

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
