Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

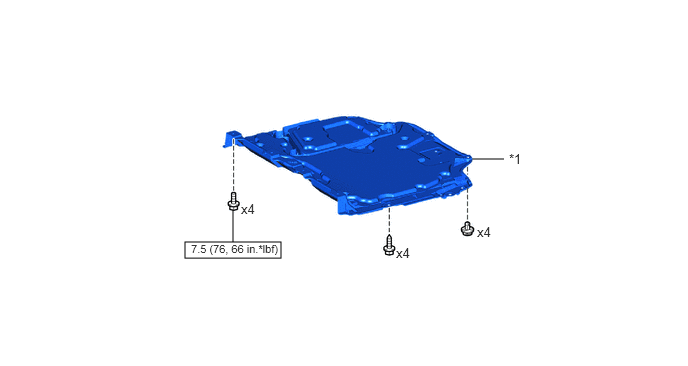

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 1 FLOOR HEAT INSULATOR	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 3)

*1	NO. 1 CONSOLE BOX DUCT	*2	NO. 2 CONSOLE BOX DUCT
*3	TRANSMISSION CONTROL CABLE ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
