Removal [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  3. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

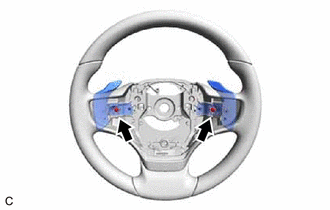

    1. Remove the 2 screws.
      GTY809669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

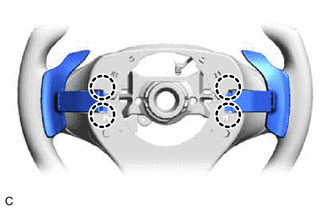

    2. Disengage the 4 claws.
      GTY809665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clamps to disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY809666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the 2 shift paddle switches (transmission shift switch assemblies) from the No. 1 switch wire.
      GTY809663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 SWITCH WIRE

    HINT:

    Perform this procedure only when replacement of the No. 1 switch wire is necessary.

    1. Disengage the 4 guides and remove the No. 1 switch wire from the steering wheel assembly.
      GTY834838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
