Installation [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
    Fig 1: Transmission Floor Shift Assembly Bolt Tightening Sequence
    GTY831025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Temporarily install the transmission floor shift assembly to the vehicle body with the 4 bolts.
    2. Fully tighten the 4 bolts in the order shown in the illustration.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

    3. Engage the clamp to connect the wire harness to the transmission floor shift assembly.
    4. Connect the shift lock control ECU connector.
    5. Engage the 2 clamps to connect the wire harness to the transmission floor shift assembly.
    6. Connect the transmission control switch connector.
  2. INSTALL NO. 2 CONSOLE BOX DUCT

    See step  3

  3. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Slide the adjuster case cover in the direction shown by the arrow.
      GTY776920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Adjuster Case
      *2 Adjuster Case Cover
    2. Using a precision screwdriver, pull out the lock piece of the adjuster case.
      GTY803140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Adjuster Case
      *2 Lock Piece

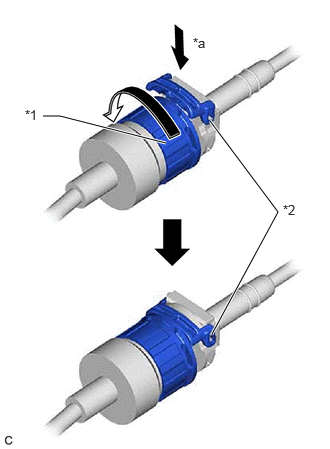

    3. Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.
      GTY825344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Nut
      *2 Stopper
      *a Push in
    4. Connect the transmission control cable assembly to the transmission floor shift assembly.
      GTY796969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stopper
      NOTE:

      After installation, check that the outer part of the stopper is as shown in the illustration.

    5. Connect the transmission control cable assembly to the transmission floor shift assembly.
      GTY798578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin.
      • Connect the transmission control cable assembly so that the lock piece faces the driver side.
    6. Using your fingers, gently pull the cable rod towards the rear of the vehicle to remove backlash.
      GTY828708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cable Rod

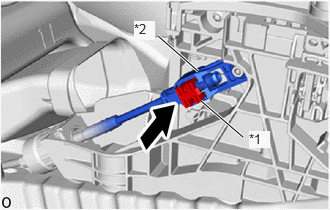

    7. Push in the lock piece of the adjuster case to lock it.
      GTY809700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Piece
      *2 Adjuster Case

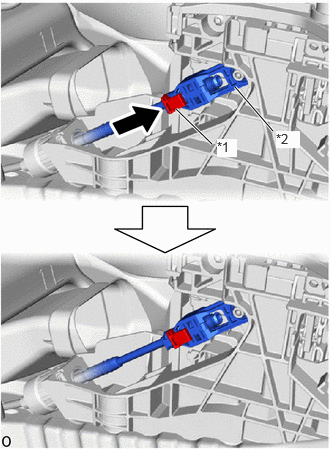

    8. Move the adjuster case cover in the direction shown by the arrow.
      NOTE:

      If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the cable will not be able to lock, and reliable shift operation will not be possible.

      GTY825278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Adjuster Case Cover
      *2 Adjuster Case
  4. INSTALL REAR CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [10/2018 - 07/2022] , or refer to INSTALLATION [07/2022 - ]

  5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    See step  1

  6. INSTALL SHIFT LEVER HOLE COVER

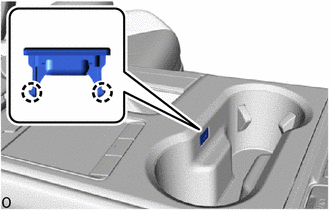

    1. Engage the 2 claws to install the shift lever hole cover to the upper console panel sub-assembly.
      GTY798546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT SHIFT LEVER POSITION

    See step  2

  8. ADJUST SHIFT LEVER POSITION

    See step  3
