Disassembly [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT POSITION INDICATOR
    1. Disengage the 2 clamps to disconnect the wire harness.
      GTY798587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

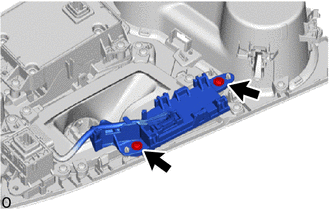

    2. Remove the 2 screws and shift position indicator from the upper console panel sub-assembly.
      GTY798589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LOWER POSITION INDICATOR HOUSING
    1. Disengage the 4 claws and 2 guides to remove the lower position indicator housing from the shift lock control unit assembly.
      GTY798545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the lower position indicator housing.
