Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

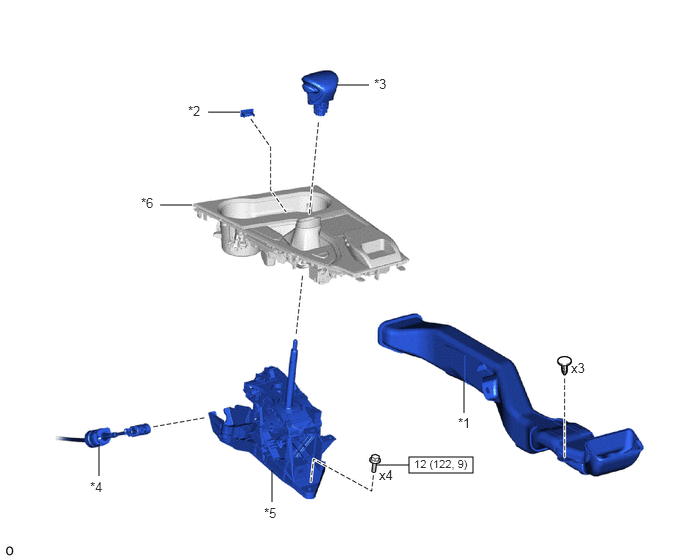

| *1 |
NO. 2 CONSOLE BOX DUCT |
*2 |
SHIFT LEVER HOLE COVER |
| *3 |
SHIFT LEVER KNOB SUB-ASSEMBLY |
*4 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *5 |
TRANSMISSION FLOOR SHIFT ASSEMBLY |
*6 |
UPPER CONSOLE PANEL SUB-ASSEMBLY |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
LOWER POSITION INDICATOR HOUSING |
*2 |
SHIFT POSITION INDICATOR |
| *3 |
UPPER CONSOLE PANEL SUB-ASSEMBLY |
*4 |
SHIFT LOCK CONTROL UNIT ASSEMBLY |
