Removal [10/2018 - 07/2022]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [10/2018 - 07/2022]
- REMOVE MOTOR CABLE WARNING:
Be sure to wear insulated gloves.

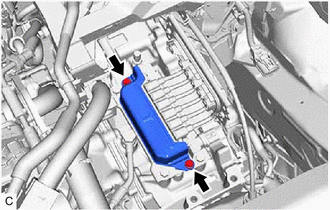

- Remove the 2 bolts and connector cover from the hybrid vehicle transaxle assembly.
- Disengage the 2 claws to remove the terminal cap from the hybrid vehicle transaxle assembly.
- Using an insulated tool, remove the 6 bolts and motor cable from the hybrid vehicle transaxle assembly.
*a Waterproof Seal NOTE:- Keep the motor cable terminals and their installation area free from foreign matter, water, etc.
- Do not touch the waterproof seal or terminals of the motor cable.
- Cover the hole where the motor cable was installed with tape or equivalent (non-residue type) to prevent entry of foreign matter.
- Remove the 2 bolts and connector cover from the hybrid vehicle transaxle assembly.
