Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications (1 Of 4)
GTY779654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE WIRE *2 FLYWHEEL HOUSING SIDE COVER
*3 FUEL DELIVERY GUARD *4 HV AIR CONDITIONING WIRE
*5 STARTER HOLE INSULATOR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Fig 2: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications (2 Of 4)
GTY1086184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *2 HYBRID VEHICLE TRANSAXLE ASSEMBLY
*3 MOTOR CABLE *4 NO. 2 ENGINE MOVING CONTROL ROD
*5 TERMINAL CAP *6 CONNECTOR COVER
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -
Fig 3: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications (3 Of 4)
GTY800899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MOTOR COOLING COOLER *2 OIL COOLER UNION BOLT
*3 GASKET *4 NO. 1 OIL COOLER TUBE CLAMP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -

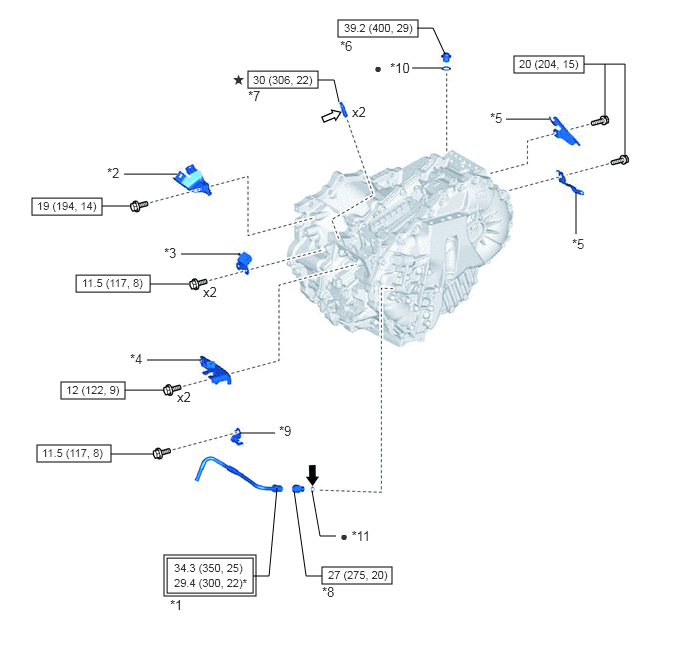

Fig 4: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications (4 Of 4)
GTY969176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 MOTOR COOLING PIPE *2 NO. 1 WATER HOSE CLAMP BRACKET
*3 HOSE BRACKET *4 NO. 1 TRANSMISSION CONTROL CABLE BRACKET
*5 WIRE HARNESS CLAMP BRACKET *6 TRANSAXLE HOUSING PLUG
*7 STUD BOLT *8 UNION
*9 NO. 1 OIL COOLER TUBE CLAMP *10 GASKET
*11 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
* For use with a union nut wrench • Non-reusable part
Toyota Genuine ATF WS Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
* Precoated part - -
