Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

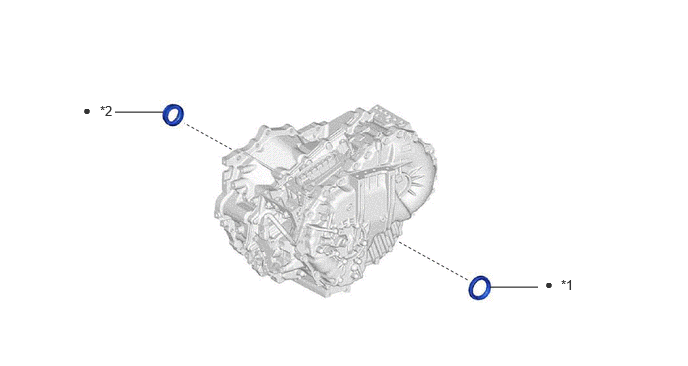

Fig 1: Hybrid Transaxle Oil Seal Replacement Components With Torque Specifications
GTY744425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DRIVE SHAFT OIL SEAL LH *2 FRONT DRIVE SHAFT OIL SEAL RH
• Non-reusable part - -
