Removal [10/2018 - 07/2022]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE METER HOOD SUB-ASSEMBLY
Refer to REMOVAL [10/2018 - 07/2022]
- REMOVE COMBINATION SWITCH ASSEMBLY (SATELLITE SWITCH SET)
- Disengage the clamp to disconnect the wire harness from the meter hood sub-assembly.
- Disconnect the combination switch assembly (satellite switch set) connector.

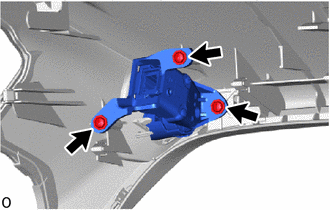

- Remove the 3 screws and combination switch assembly (satellite switch set) from the meter hood sub-assembly.
- Disengage the 3 claws and guide to remove the No. 2 instrument panel hole cover from the meter hood sub-assembly.
- Disengage the clamp to disconnect the wire harness from the meter hood sub-assembly.
