Installation [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HYBRID BATTERY THERMISTOR
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Engage the 3 claws of the hybrid battery thermistor (sensor portions) to install the hybrid battery thermistor to the HV battery.
      GTY808067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 1st Module from the HV Battery Junction Block Assembly Side
      (Wire harness color: Blue)
      *b 14th Module from the HV Battery Junction Block Assembly Side
      (Wire harness color: White)
      *c 30th Module from the HV Battery Junction Block Assembly Side
      (Wire harness color: Red)

      HINT:

      Install each hybrid battery thermistor (sensor portion) to the appropriate location shown in the illustration.

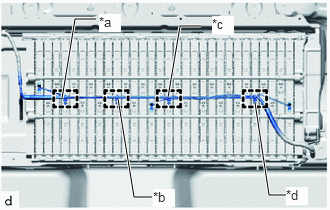

    2. Engage the 4 clamps in the locations shown in the illustration.
      GTY814677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 4th Module from the HV Battery Junction Block Assembly Side
      *b 10th Module from the HV Battery Junction Block Assembly Side
      *c 16th Module from the HV Battery Junction Block Assembly Side
      *d 26th Module from the HV Battery Junction Block Assembly Side
    3. Connect the battery voltage sensor connector.
    4. Engage the clamp.
    5. Engage the clamp.
  2. INSTALL NO. 1 HV BATTERY COVER INTAKE DUCT
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Engage the claw to install the No. 1 HV battery cover intake duct to the HV battery.
    2. Engage the claw of hybrid battery thermistor (sensor portion) to connect the hybrid battery thermistor to the No. 1 HV battery cover intake duct.
  3. INSTALL NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY
    WARNING:

    Wear insulated gloves.

    1. Pull back the rear hybrid battery shield sub-assembly to install the No. 1 hybrid battery shield sub-assembly to the HV battery.

      HINT:

      Pull back the rear hybrid battery shield sub-assembly until there is sufficient clearance for the stud bolt of the No. 1 hybrid battery shield sub-assembly.

    2. Install the 4 nuts.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  4. INSTALL HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to INSTALLATION [10/2018 - ]
