DTC P0AA0-00: Hybrid/EV Battery Positive Contactor Circuit Stuck Closed [10/2018 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain / Hybrid Control and Motor Generator / Trouble Codes.
4. Check for DTCs.

   Powertrain > Hybrid Control > Trouble Codes

   Powertrain > Motor Generator > Trouble Codes

   Result

   Result	Proceed to
   P0AA000 only is output, or DTCs except the ones in the table below are also output.	A
   DTCs of hybrid control system in the tables below are output.	B
   DTCs of motor generator control system in the tables below are output.	C

   Malfunction Content	System	Relevant DTC
   Microcomputer malfunction	Hybrid control system	P060647	Hybrid/EV Powertrain Control Module Processor Watchdog / Safety MCU Failure
   		P060687	Hybrid/EV Powertrain Control Module Processor to Monitoring Processor Missing Message
   		P060A47	Hybrid/EV Powertrain Control Module Monitoring Processor Watchdog / Safety MCU Failure
   		P060A87	Hybrid/EV Powertrain Control Module Processor from Monitoring Processor Missing Message
   		P0A1B49	Drive Motor "A" Control Module Internal Electronic Failure
   		P1C9E9F	Hybrid/EV System Reset Stuck Off
   	Motor generator control system	P0A1B1F	Generator Control Module Circuit Intermittent
   		P0A1A47	Generator Control Module Watchdog / Safety μC Failure
   		P0A1A49	Generator Control Module Internal Electronic Failure
   		P1C2A1C	Generator A/D Converter Circuit Circuit Voltage Out of Range
   		P1C2A49	Generator A/D Converter Circuit Internal Electronic Failure
   		P1C2B1C	Drive Motor "A" Control Module A/D Converter Circuit Voltage Out of Range
   		P1C2B49	Drive Motor "A" Control Module A/D Converter Circuit Internal Electronic Failure
   		P1CAC49	Generator Position Sensor Internal Electronic Failure
   		P1CAD49	Drive Motor "A" Position Sensor Internal Electronic Failure
   		P1CAF38	Generator Position Sensor REF Signal Cycle Malfunction Signal Frequency Incorrect
   		P1CB038	Drive Motor "A" Position Sensor REF Signal Frequency Incorrect
   		P313383	Communication Error from Generator to Drive Motor "A" Value of Signal Protection Calculation Incorrect
   		P313386	Communication Error from Generator to Drive Motor "A" Signal Invalid
   		P313387	Communication Error from Generator to Drive Motor "A" Missing Message
   Power source circuit malfunction	Motor generator control system	P06D61C	Generator Control Module Offset Power Circuit Voltage Out of Range
   		P06B01C	Generator Control Module Position Sensor REF Power Source Circuit Voltage Out of Range
   Communication system malfunction	Hybrid control system	P312387	Lost Communication with Drive Motor Control Module "A" from Hybrid/EV Control Module Missing Message
   Sensor and actuator circuit malfunction	Hybrid control system	P0AD911	Hybrid/EV Battery Positive Contactor Circuit Short to Ground
   		P0AD915	Hybrid/EV Battery Positive Contactor Circuit Short to Auxiliary Battery or Open
   		P0ADD11	Hybrid/EV Battery Negative Contactor Circuit Short to Ground
   		P0ADD15	Hybrid/EV Battery Negative Contactor Circuit Short to Auxiliary Battery or Open
   		P0AE411	Hybrid/EV Battery Precharge Contactor Circuit Short to Ground
   		P0AE415	Hybrid/EV Battery Precharge Contactor Circuit Short to Auxiliary Battery or Open
   	Motor generator control system	P0A3F16	Drive Motor "A" Position Sensor Circuit Voltage Below Threshold
   		P0A4B16	Generator Position Sensor Circuit Voltage Below Threshold
   		P0A4B21	Generator Position Sensor Signal Amplitude < Minimum
   		P0A4B22	Generator Position Sensor Signal Amplitude > Maximum
   		P0C5013	Drive Motor "A" Position Sensor Circuit "A" Circuit Open
   		P0C5016	Drive Motor "A" Position Sensor Circuit "A" Circuit Voltage Below Threshold
   		P0C5017	Drive Motor "A" Position Sensor Circuit "A" Circuit Voltage Above Threshold
   		P0C5A13	Drive Motor "A" Position Sensor Circuit "B" Circuit Open
   		P0C5A16	Drive Motor "A" Position Sensor Circuit "B" Circuit Voltage Below Threshold
   		P0C5A17	Drive Motor "A" Position Sensor Circuit "B" Circuit Voltage Above Threshold
   		P0C6413	Generator Position Sensor Circuit "A" Circuit Open
   		P0C6416	Generator Position Sensor Circuit "A" Circuit Voltage Below Threshold
   		P0C6417	Generator Position Sensor Circuit "A" Circuit Voltage Above Threshold
   		P0C6913	Generator Position Sensor Circuit "B" Circuit Open
   		P0C6916	Generator Position Sensor Circuit "B" Circuit Voltage Below Threshold
   		P0C6917	Generator Position Sensor Circuit "B" Circuit Voltage Above Threshold
   System malfunction	Hybrid control system	P0D2D1C	Drive Motor "A" Inverter Voltage Sensor Voltage Out of Range
   		P1C8349	High Voltage Power Resource Circuit Voltage Sensor after Boosting Malfunction
   		P0C7600	Hybrid/EV Battery System Discharge Time Too Long
   	Motor generator control system	P0D2D16	Drive Motor "A" Inverter Voltage Sensor (VH) Circuit Voltage Below Threshold
   		P0D2D17	Drive Motor "A" Inverter Voltage Sensor (VH) Circuit Voltage Above Threshold
   		P1CB69E	Drive Motor "A" Inverter Voltage Sensor (VH) Stuck On

   HINT:

   • P0AA000 may be output as a result of the malfunction indicated by the DTCs above.
     1. The chart above is listed in inspection order of priority.
     2. Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)
5. Turn the power switch off.

Result:

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2018 - ]

Result:

C

GO TO DTC CHART (MOTOR GENERATOR CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2018 - ]

Result:

A

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
4. Read the freeze frame data of DTC P0AA000.

   Powertrain > Hybrid Control > Trouble Codes

   NOTE:

   As freeze frame data is stored immediately before and after a DTC is stored, make sure to only read the values for the moment the DTC was stored ("0(s)").

   Result

   Result	Proceed to
   Difference between "VL-Voltage before Boosting" and "VH-Voltage after Boosting" is less than 76 V.	A
   Difference between "VL-Voltage before Boosting" and "VH-Voltage after Boosting" is 76 V or more.	B

   HINT:

   If VH-Voltage after Boosting is output even when an off command is being sent to the system main relay (positive side), P0AA000 is output. If the difference between the "VL-Voltage before Boosting" and the "VH-Voltage after Boosting" is large, it is determined that there is an inverter (VH sensor) malfunction.

5. Turn the power switch off.

Result:

B

REPLACE INVERTER WITH CONVERTER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

Result:

A

See step  3

Refer to PROCEDURE - Step 1

Result

Result:

OK

See step  5

Result:

NG

See step  4

Result

Result:

NEXT

See step  5

1. Check the connection condition of the NF3 floor wire connector and the contact pressure of each terminal. Check the terminals for deformation, and check the connector for water ingress and foreign matter.

   Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [10/2018 - ]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   - The connector is connected securely.

   - The terminals are not deformed and are connected securely.

   - No water or foreign matter in the connector.

   Result

   Result	Proceed to
   OK	A
   NG (The connector is not connected securely.)	B
   NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)	C

Result:

A

See step  8

Result:

C

See step  7

Result:

B

See step  6

Result

Result:

NEXT

See step  8

Result

Result:

NEXT

See step  8

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

2. Remove the No. 1 HV battery cover panel RH.

   Refer to PROCEDURE - Step 17 [10/2018 - 07/2022] Refer to PROCEDURE - Step 17 [07/2022 - ]

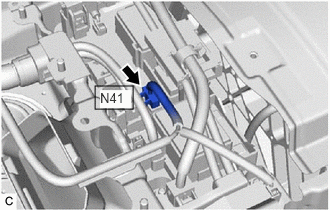

3. Check the connector connections and contact pressure of the relevant terminals of the N41 HV battery junction block assembly connector.

   Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [10/2018 - ]

   OK

   The connectors are connected securely and there are no contact pressure problems.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Install the No. 1 HV battery cover panel RH.

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  10

Result:

NG

See step  9

Result

Result:

NEXT

See step  10

1. Check the installation condition of the ground wire NE.

   OK

   The ground wire NE is securely installed.

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  12

Result:

NG

See step  11

Result

Result:

NEXT

See step  12

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

2. Remove the No. 1 HV battery cover panel RH.

   Refer to PROCEDURE - Step 17 [10/2018 - 07/2022] Refer to PROCEDURE - Step 17 [07/2022 - ]

3. Disconnect the N41 HV battery junction block assembly connector.
4. Disconnect the F60 hybrid vehicle control ECU connector.
5. Measure the resistance according to the value(s) in the table below.

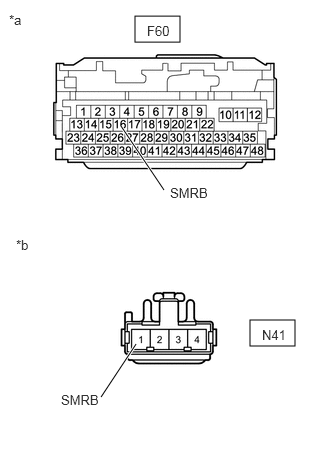

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Hybrid Vehicle Control ECU)
   *b	Front view of wire harness connector (to HV Battery Junction Block Assembly)

   Standard Resistance (Check for Open)

   Tester Connection	Switch Condition	Specified Condition
   F60-16 (SMRB) - N41-1 (SMRB)	Power switch off	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Switch Condition	Specified Condition
   F60-16 (SMRB) and N41-1 (SMRB) - Body ground and other terminals	Power switch off	10 kΩ or higher

6. Reconnect the F60 hybrid vehicle control ECU connector.
7. Reconnect the N41 HV battery junction block assembly connector.
8. Install the No. 1 HV battery cover panel RH.

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  14

Result:

NG

See step  13

Result

Result:

NEXT

See step  14

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

2. Remove the No. 1 HV battery cover panel RH.

   Refer to PROCEDURE - Step 17 [10/2018 - 07/2022] Refer to PROCEDURE - Step 17 [07/2022 - ]

3. Disconnect the N41 HV battery junction block assembly connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   N41-3 (GND) - Body ground	Power switch off	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to HV Battery Junction Block Assembly)

5. Reconnect the N41 HV battery junction block assembly connector.
6. Install the No. 1 HV battery cover panel RH.

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  16

Result:

NG

See step  15

Result

Result:

NEXT

See step  16

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

2. Remove the No. 1 HV battery cover panel RH.

   Refer to PROCEDURE - Step 17 [10/2018 - 07/2022] Refer to PROCEDURE - Step 17 [07/2022 - ]

3. Disconnect the N41 HV battery junction block assembly connector.
4. Measure the resistance according to the value(s) in the table below.

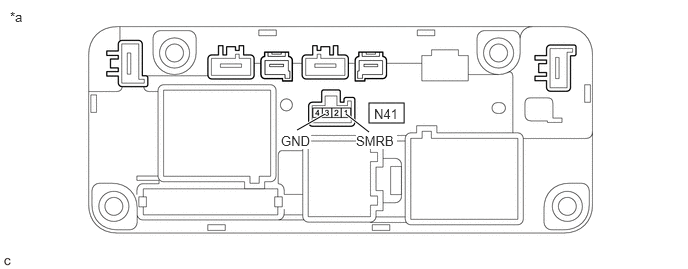

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Component without harness connected (HV Battery Junction Block Assembly)

   -

   -

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N41-1 (SMRB) - N41-3 (GND)	-40 to 80°C (-40 to 176°F)	25.0 to 59.0 Ω

5. Reconnect the N41 HV battery junction block assembly connector.
6. Install the No. 1 HV battery cover panel RH.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  19

Result:

OK

See step  17

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.

2. Remove the No. 1 HV battery cover panel RH.

   Refer to PROCEDURE - Step 17 [10/2018 - 07/2022] Refer to PROCEDURE - Step 17 [07/2022 - ]

3. Disconnect the 2 HV floor under wire connectors from the HV battery junction block assembly. (for 2WD)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disconnect the 2 HV battery pack wire connectors from the HV battery junction block assembly. (for AWD)
5. Disconnect the 2 HV battery high voltage connectors from the HV battery junction block assembly.
   NOTE:

   Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

6. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (for 2WD)

   Tester Connection	Switch Condition	Specified Condition
   W4-1 (CBI) - z15-1 (+)	Power switch off	10 kΩ or higher

   Standard Resistance (for AWD)

   Tester Connection	Switch Condition	Specified Condition
   Y8-1 (CBI) - z15-1 (+)	Power switch off	10 kΩ or higher

   HINT:

   • If a system main relay is stuck closed, inspect the HV battery junction block assembly without removing it from the vehicle, in order to keep the relay closed.
   • If the result of reading the freeze frame data is A, the HV battery junction block assembly must be replaced. Measuring resistance can determine that this is either a present or past malfunction.

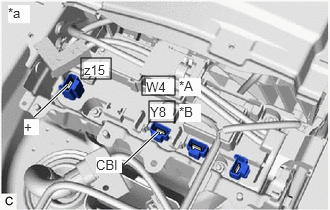

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for 2WD
   *B	for AWD
   *a	Component without harness connected (HV Battery Junction Block Assembly)

7. Reconnect the 2 HV battery high voltage connectors.
8. Reconnect the 2 HV floor under wire connectors. (for 2WD)
9. Reconnect the 2 HV battery pack wire connectors. (for AWD)
10. Install the No. 1 HV battery cover panel RH.

    Result

    Result	Judgment	Proceed to
    OK	Past malfunction	A
    NG	Present malfunction	B

Result:

B

See step  20

Result:

A

See step  18

Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]

Result

Result:

NEXT

See step  21

Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]

Result

Result:

NEXT

See step  21

Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]

Result

Result:

NEXT

See step  21

1. Install the service plug grip.
2. Turn the power switch on (IG).
3. Clear the DTCs.

   Refer to DTC CHECK / CLEAR [10/2018 - ]

4. Turn the power switch off and wait for 30 seconds or more.
5. Turn the power switch on (READY).
6. Enter the following menus: Powertrain / Hybrid Control / Data List / Hybrid Battery Voltage, VL-Voltage before Boosting.
7. According to the display on the Techstream, read the Data List and monitor the values of "Hybrid Battery Voltage" and "VL-Voltage before Boosting" for 3 minutes.

   Powertrain > Hybrid Control > Data List

   Tester Display
   VL-Voltage before Boosting
   Hybrid Battery Voltage

   Result

   Result	Proceed to
   Difference between "Hybrid Battery Voltage" and "VL-Voltage before Boosting" is always less than 100 V.	A
   Difference between "Hybrid Battery Voltage" and "VL-Voltage before Boosting" is 100 V or more.	B

8. Turn the power switch off.

Result:

A

END

Result:

B

REPLACE HYBRID VEHICLE CONTROL ECU AND HV BATTERY JUNCTION BLOCK ASSEMBLY

HYBRID VEHICLE CONTROL ECU: Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]

HV BATTERY JUNCTION BLOCK ASSEMBLY: Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]
