Catalyst Location
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

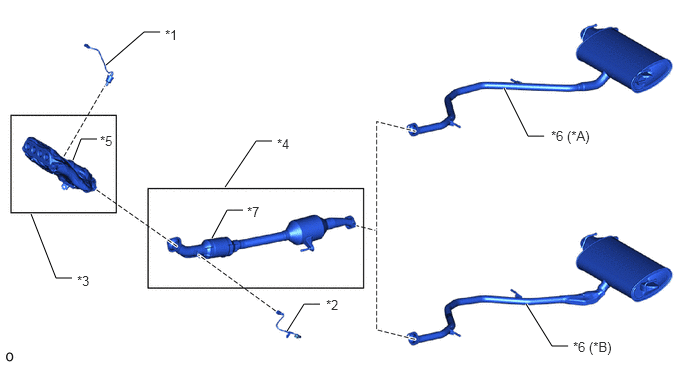

| *A | for 2WD | *B | for AWD |
| *1 | Air Fuel Ratio Sensor (Sensor 1) | *2 | Air Fuel Ratio Sensor (Sensor 2) |
| *3 | Exhaust Manifold | *4 | Front Exhaust Pipe Assembly |
| *5 | TWC: Front Catalyst | *6 | Tail Exhaust Pipe Assembly |
| *7 | TWC: Rear Catalyst | - | - |
NOTE:
When replacing the exhaust manifold (*3) and the front exhaust pipe assembly (*4) in order to replace the three-way catalytic converter, it is not necessary to replace the air fuel ratio sensor (sensor 1) (*1) and the air fuel ratio sensor (sensor 2) (*2).
