Removal [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [10/2018 - ]

  2. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to REMOVAL [10/2018 - ]

  3. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

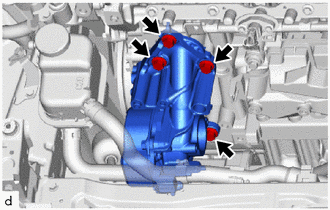

    1. Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block sub-assembly.
      GTY826939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the engine water pump assembly (water inlet housing).
      GTY771403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
