Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

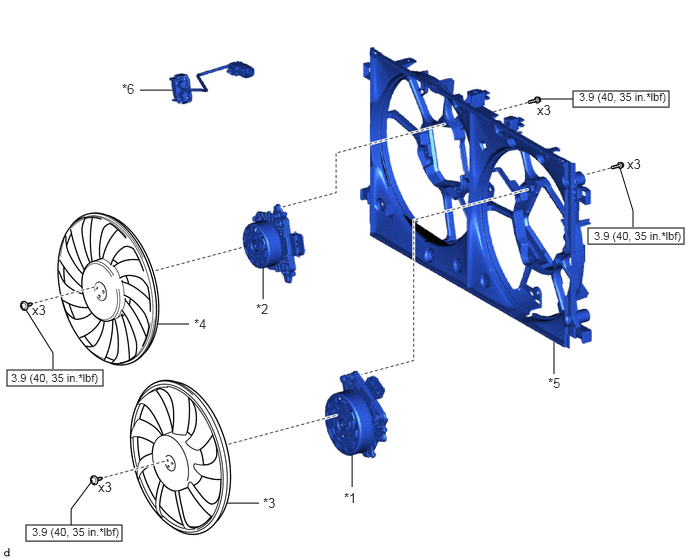

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications
GTY820771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COOLING FAN MOTOR LH *2 COOLING FAN MOTOR RH
*3 FAN LH *4 FAN RH
*5 FAN SHROUD *6 COOLING FAN WIRE
N.m (kgf/cm, ft.lbf): Specified torque - -
