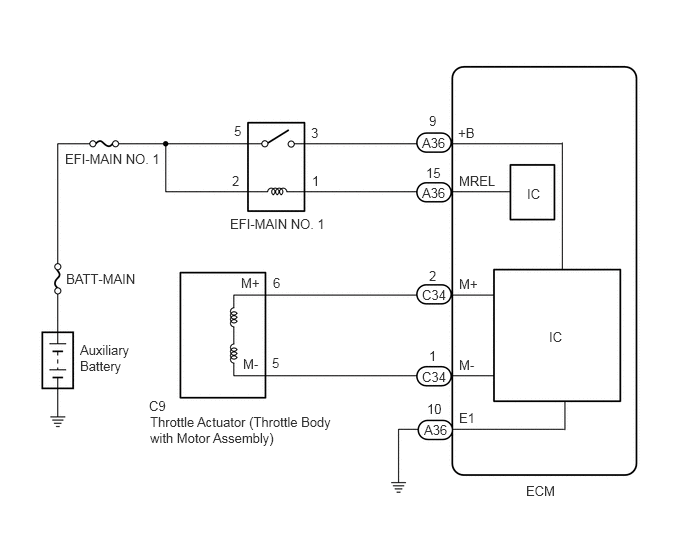

DTC P2100-18: Throttle Actuator "A" Control Motor Circuit Current Below Threshold; DTC P210019: Throttle Actuator "A" Control Motor Circuit Current Above Threshold [10/2019 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
