Parts Location [10/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

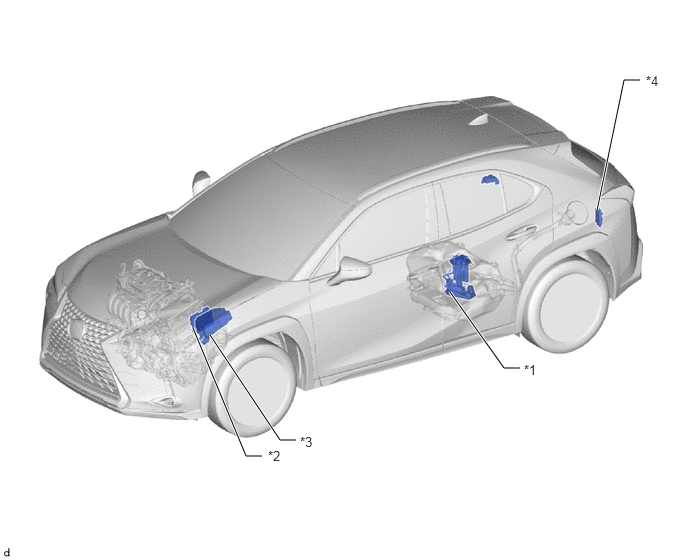

GTY837199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
- FUEL PUMP (for Low Pressure)
- FUEL SENDER GAUGE ASSEMBLY
- FUEL MAIN VALVE ASSEMBLY		 *2 ECM
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 ENGINE ROOM JUNCTION BLOCK
- IG2 NO. 1 RELAY
- EFI-MAIN NO. 2 RELAY
- INJ FUSE		 *4 FUEL PUMP CONTROL ECU

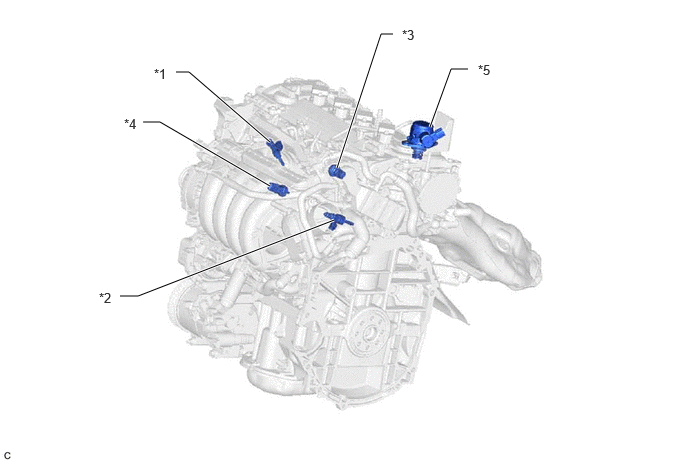

GTY826251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 PORT FUEL INJECTOR ASSEMBLY *2 DIRECT FUEL INJECTOR ASSEMBLY
*3 NO. 2 FUEL PRESSURE SENSOR (for Low Pressure) *4 FUEL PRESSURE SENSOR (for High Pressure)
*5 FUEL PUMP ASSEMBLY (for High Pressure) - -
