Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

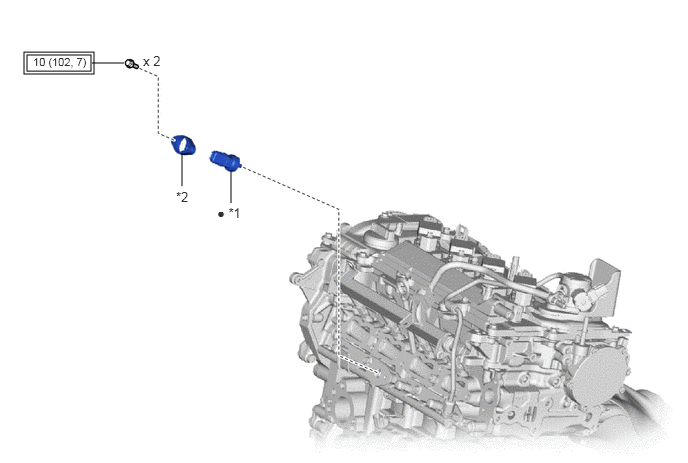

Fig 1: Fuel Pressure Sensor (High Pressure) Replacement Components With Torque Specifications

*1	FUEL PRESSURE SENSOR	*2	NO. 1 FUEL PRESSURE SENSOR HOLDER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
