Removal [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE FUEL DELIVERY PIPE
    NOTE:

    When replacing the fuel delivery pipe, it is necessary to replace the No. 1 fuel pipe sub-assembly with a new one.

    1. Disengage the clamp.
      GTY779761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 4 direct fuel injector assembly connectors.
      GTY818261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure to disconnect the connectors carefully.

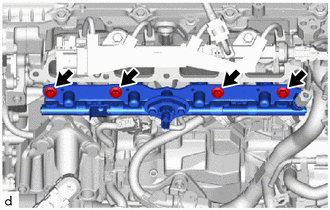

    3. Remove the 4 bolts and fuel delivery pipe with the 4 direct fuel injector assemblies from the cylinder head sub-assembly.
      GTY836748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Make sure not to touch or strike the tips of the direct fuel injector assemblies.
      • Pull and remove the fuel delivery pipe in a straight line without tilting it.
  3. REMOVE DIRECT FUEL INJECTOR ASSEMBLY
    1. Secure the fuel delivery pipe in a vise between aluminum plates and pull out the 4 direct fuel injector assemblies.
      GTY755577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Pull and remove each direct fuel injector assembly in a straight line to avoid damaging the seal surface of the fuel delivery pipe O-ring.
      • After removing the direct fuel injector assemblies, remove any O-rings, No. 1 fuel injector back-up rings and No. 3 fuel injector back-up rings remaining on the fuel delivery pipe side.
      • Attach a tag or label with the corresponding cylinder number to each direct fuel injector assembly so that they can be installed to their original locations.
      • Cover the tip of each direct fuel injector assembly to prevent it from being damaged.
    2. Remove the nozzle holder clamp from each direct fuel injector assembly.
    3. Using needle nose pliers, remove the No. 3 fuel injector back-up ring from each direct fuel injector assembly.
      NOTE:

      Do not damage the area that contacts the O-ring.

    4. Remove the O-ring and No. 1 fuel injector back-up ring from each direct fuel injector assembly.
    5. Remove the C-ring and injector vibration insulator from each direct fuel injector assembly.
  4. REMOVE FUEL INJECTOR SEAL
    1. Using the tip of needle nose pliers, pinch and pull the fuel injector seal at several points to stretch it.
      GTY771587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Excessively pinching the fuel injector seal may damage the groove of the direct fuel injector assembly.
      • If a direct fuel injector assembly is dropped or the tip of the direct fuel injector assembly is struck, replace it with a new one.
    2. Remove the fuel injector seal from each direct fuel injector assembly.
