Inspection [10/2018 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT PURGE VALVE (PURGE VSV)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 23 to 26 Ω If the result is not as specified, replace the purge valve (purge VSV).
- Apply battery voltage between the terminals of the purge valve (purge VSV) and check that the following occurs when blowing air into the port (E).
OK
Measurement Condition Specified Condition Battery voltage applied between terminals 1 and 2 Air flows from port (F) Battery voltage not applied between terminals 1 and 2 Air does not flow If the result is not as specified, replace the purge valve (purge VSV).

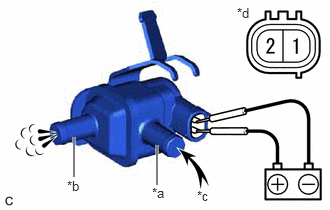

*a Port (E) *b Port (F) *c Air *d Component without harness connected
(Purge Valve (Purge VSV))
- Measure the resistance according to the value(s) in the table below.
