Removal [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  2. REMOVE EGR COOLER ASSEMBLY

    See step  2

  3. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
    1. Disconnect the EGR valve assembly connector.
      GTY837237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

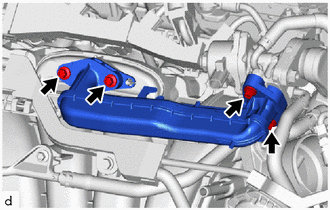

    2. Using an 8 mm socket wrench, remove the 4 bolts and No. 1 EGR pipe sub-assembly from the intake manifold and EGR valve assembly.
      GTY837911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the EGR valve adapter gasket from the No. 1 EGR pipe sub-assembly.
      GTY823565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the EGR inlet gasket from the intake manifold.
      GTY823574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE EGR VALVE ASSEMBLY
    1. Slide the clip and remove the No. 4 water by-pass hose from the EGR valve assembly.
      GTY788434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Water By-pass Hose
      *2 No. 8 Water By-pass Hose
    2. Slide the clip and disconnect the No. 8 water by-pass hose from the EGR valve assembly.
    3. Using the 8 mm socket wrench, remove the 2 bolts.
      GTY823573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
