Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

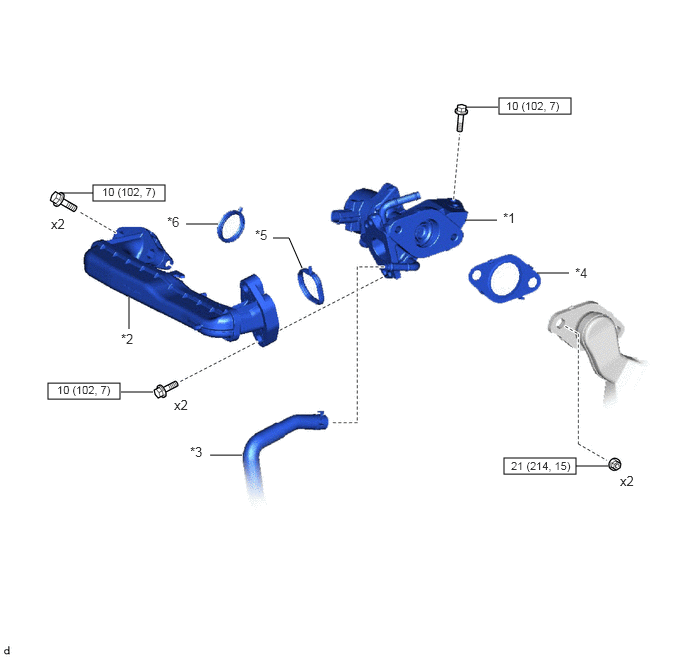

Fig 1: EGR Valve Replacement Components With Torque Specifications

*1	EGR VALVE ASSEMBLY	*2	NO. 1 EGR PIPE SUB-ASSEMBLY
*3	NO. 8 WATER BY-PASS HOSE	*4	EGR VALVE GASKET
*5	EGR VALVE ADAPTER GASKET	*6	EGR INLET GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
