Removal [07/2022 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [07/2022 - ]
- REMOVE EGR COOLER ASSEMBLY

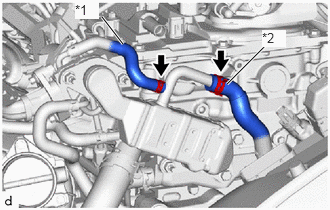

- Slide the 2 clips and disconnect the water hose connector sub-assembly and No. 3 water by-pass hose from the EGR cooler assembly.
*1 Water Hose Connector Sub-assembly *2 No. 3 Water By-pass Hose - Remove the 2 bolts and 3 nuts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.
- Remove the EGR valve gasket from the EGR valve assembly.
- Remove the EGR cooler gasket from the EGR cooler assembly.
- Slide the 2 clips and disconnect the water hose connector sub-assembly and No. 3 water by-pass hose from the EGR cooler assembly.
