Reassembly [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SPARK PLUG TUBE

    HINT:

    When using a new cylinder head sub-assembly, the spark plug tubes must be replaced.

    1. Apply adhesive to a new spark plug tube as shown in the illustration.
      GTY749855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive
      *b Application Width
      *c Distance

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      Standard Application Width

      1.0 to 7.0 mm (0.0394 to 0.276 in.)

      Distance

      1.0 mm (0.0394 in.)

      NOTE:
      • Install the spark plug tube within 3 minutes of applying adhesive.
      • Be careful not to deform the spark plug tube.
      • Do not expose the spark plug tube to engine oil for at least 1 hour after installing it.

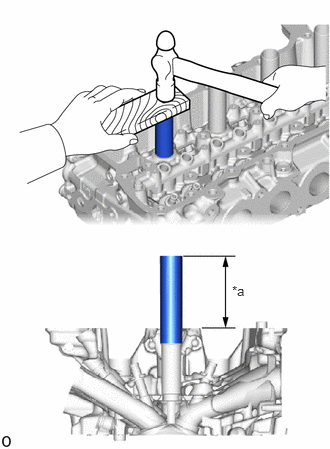

    2. Using a wooden block and hammer, tap in the 4 spark plug tubes to the specified protrusion height.
      GTY824633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion Height

      Standard Protrusion Height

      77.3 to 78.3 mm (3.04 to 3.08 in.)

      NOTE:

      To avoid tapping in the spark plug tube too far, measure the protrusion height while tapping it.

  2. INSTALL STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

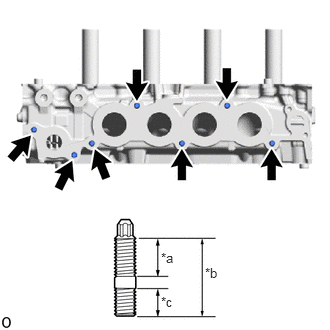

    1. Using an E8 "TORX" socket wrench, install the 7 stud bolts.
      GTY818312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 20 mm (0.787 in.)
      *b 35 mm (1.38 in.)
      *c 13 mm (0.512 in.)

      Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

  3. INSTALL NO. 1 STRAIGHT SCREW PLUG

    HINT:

    If coolant leaks from a No. 1 straight screw plug or a plug is corroded, replace it.

    1. Apply adhesive to the 4 No. 1 straight screw plugs.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      Install the No. 1 straight screw plugs within 3 minutes of applying adhesive.

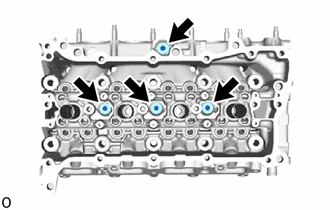

    2. Using a 6 mm straight hexagon wrench, install the 4 No. 1 straight screw plugs to the cylinder head sub-assembly.
      GTY824958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

  4. INSTALL VALVE SPRING SEAT
    1. Install the 16 valve spring seats to the cylinder head sub-assembly.
  5. INSTALL VALVE STEM OIL SEAL
    1. Apply a light coat of engine oil to 16 new valve stem oil seals.
      GTY755446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Intake Valve Stem Oil Seal
      *b Exhaust Valve Stem Oil Seal
      *c Gray
      *d Black
      NOTE:

      Make sure to install each valve stem oil seal to the correct side. Installing an intake valve stem oil seal to the exhaust side or installing an exhaust valve stem oil seal to the intake side can cause installation problems later.

      HINT:

      The intake valve stem oil seals are gray and the exhaust valve stem oil seals are black.

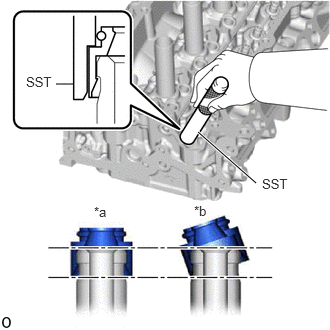

    2. Using SST, push in the 16 valve stem oil seals.
      GTY786051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      • SST: 09201-41020
      NOTE:
      • Failure to use SST will cause the valve stem oil seals to be damaged or improperly seated.
      • Do not push in the valve stem oil seals at an angle.
  6. INSTALL INTAKE VALVE
    1. Sufficiently apply engine oil to the tip area of the intake valve shown in the illustration.
      GTY759784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 mm (1.18 in.) or more
    2. Install the 8 intake valves, 8 compression springs and 8 valve spring retainers to the cylinder head sub-assembly.
      NOTE:

      Install the same parts in the same combination to their original locations.

    3. Using SST, compress each compression spring and install the 8 valve spring retainer locks.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY838076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

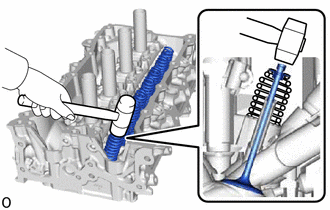

    4. Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.
      NOTE:
      • Be careful not to damage the valve stem tip.
      • Be careful not to damage the valve spring retainer.
      GTY824989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL EXHAUST VALVE
    1. Sufficiently apply engine oil to the tip area of the exhaust valve shown in the illustration.
      GTY744934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 mm (1.18 in.) or more
    2. Install the 8 exhaust valves, 8 compression springs and 8 valve spring retainers to the cylinder head sub-assembly.
      NOTE:

      Install the same parts in the same combination to their original locations.

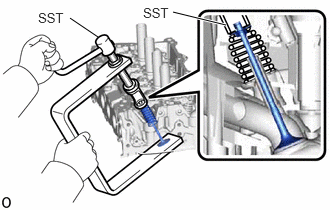

    3. Using SST, compress each compression spring and install the 8 valve spring retainer locks.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY818760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

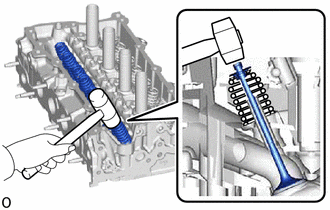

    4. Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.
      NOTE:
      • Be careful not to damage the valve stem tip.
      • Be careful not to damage the valve spring retainer.
      GTY824988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
