Disassembly [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE VALVE

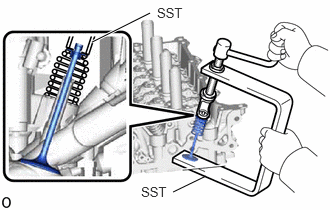

    1. Using SST, compress each compression spring and remove the 8 valve spring retainer locks.
      GTY824321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    2. Remove the 8 valve spring retainers, 8 compression springs and 8 intake valves from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  2. REMOVE EXHAUST VALVE

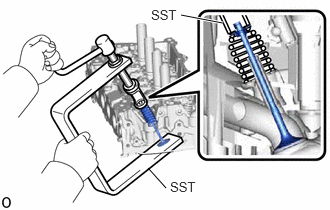

    1. Using SST, compress each compression spring and remove the 8 valve spring retainer locks.
      GTY818759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    2. Remove the 8 valve spring retainers, 8 compression springs and 8 exhaust valves from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  3. REMOVE VALVE STEM OIL SEAL

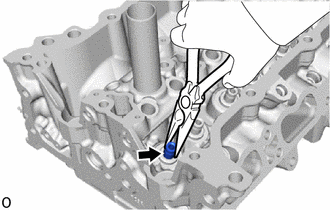

    1. Using needle-nose pliers, remove the 16 valve stem oil seals.
      GTY824960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VALVE SPRING SEAT

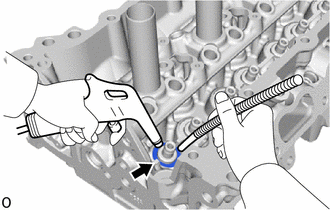

    1. Using compressed air and a Magnet Hand, remove the 16 valve spring seats from the cylinder head sub-assembly by blowing air onto them.
      GTY838217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 STRAIGHT SCREW PLUG
    NOTE:

    If coolant leaks from a No. 1 straight screw plug or a plug is corroded, replace it.

    GTY824958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a 6 mm straight hexagon wrench, remove the 4 No. 1 straight screw plugs from the cylinder head sub-assembly.
  6. REMOVE STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, remove the 7 stud bolts.
      GTY824952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
