Removal [10/2018 - 07/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY
Refer to REMOVAL [10/2018 - 07/2022]

REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
NOTE:
- Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
- To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
- Using an engine sling device and engine lift, secure the engine assembly before servicing.

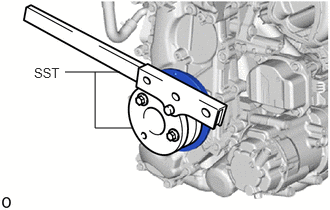

Using SST, hold the crankshaft pulley assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09213-54015
SST: 09330-00021

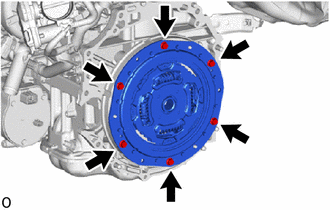

Remove the 6 bolts and transmission input damper assembly from the flywheel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FLYWHEEL SUB-ASSEMBLY

Using SST, hold the crankshaft pulley assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09213-54015
SST: 09330-00021

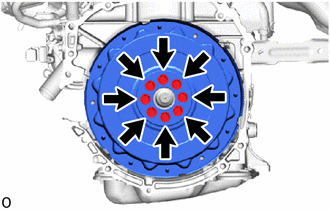

Remove the 8 bolts and flywheel sub-assembly from the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

Remove the No. 1 crankshaft position sensor plate.

REMOVE REAR ENGINE OIL SEAL

Using a knife, cut off the lip of the rear engine oil seal.

*a	Protective Tape
*b	Cut Position

Using a screwdriver, pry out the rear engine oil seal.
NOTE:
Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.

HINT:

Tape the screwdriver tip before use.
