Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

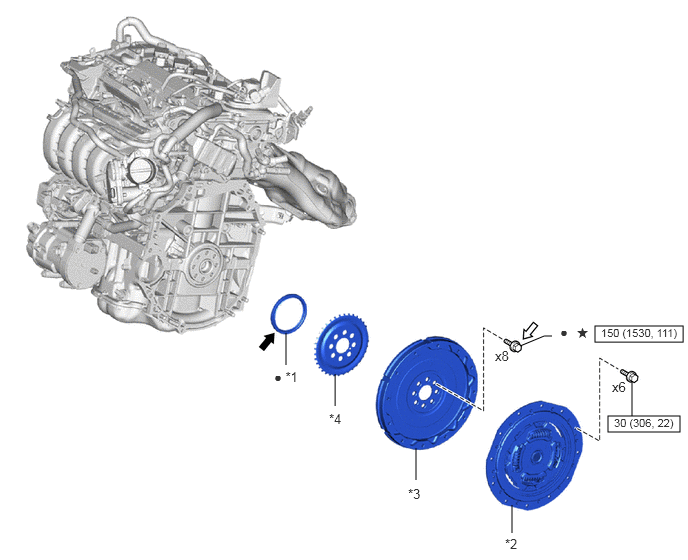

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications

*1	REAR ENGINE OIL SEAL	*2	TRANSMISSION INPUT DAMPER ASSEMBLY
*3	FLYWHEEL SUB-ASSEMBLY	*4	NO. 1 CRANKSHAFT POSITION SENSOR PLATE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease		Adhesive 1324
*	Precoated part	-	-
