Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

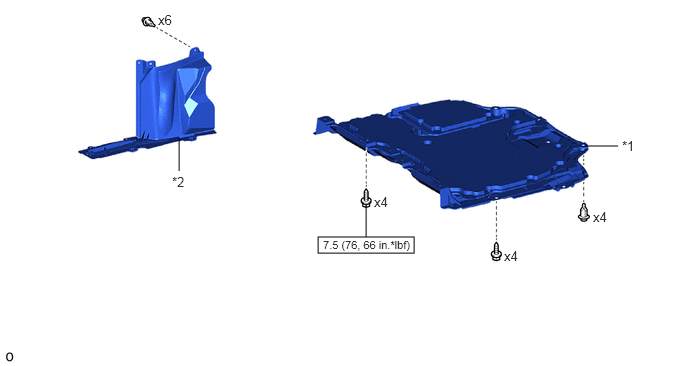

| *1 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
*2 |
REAR ENGINE UNDER COVER RH |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CRANKSHAFT PULLEY ASSEMBLY |
*2 |
NO. 1 SIDE RAIL REINFORCEMENT RH |
| *3 |
TIMING CHAIN COVER OIL SEAL |
*4 |
CRANKSHAFT PULLEY SET BOLT |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
MP grease |
- |
- |
