Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 6)
GTY807303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE UNDER COVER ASSEMBLY *2 REAR ENGINE UNDER COVER LH
*3 REAR ENGINE UNDER COVER RH - -
N.m (kgf/cm, ft.lbf): Specified torque - -
Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 6)
GTY787250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

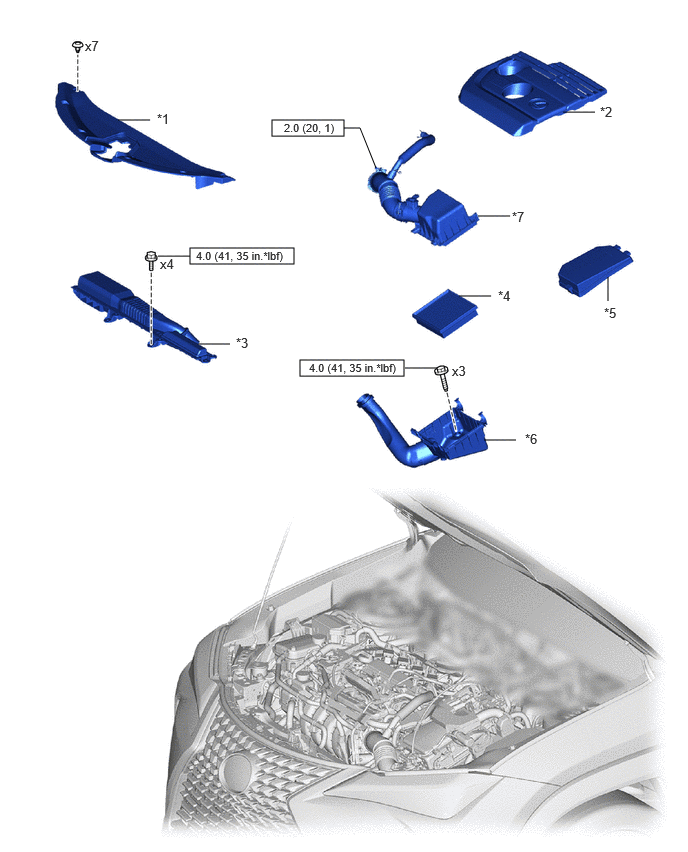

*1 RADIATOR SUPPORT OPENING COVER *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 NO. 1 AIR CLEANER INLET *4 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*5 NO. 1 RELAY BLOCK COVER *6 AIR CLEANER CASE SUB-ASSEMBLY
*7 AIR CLEANER CAP WITH AIR CLEANER HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 6)
GTY779979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

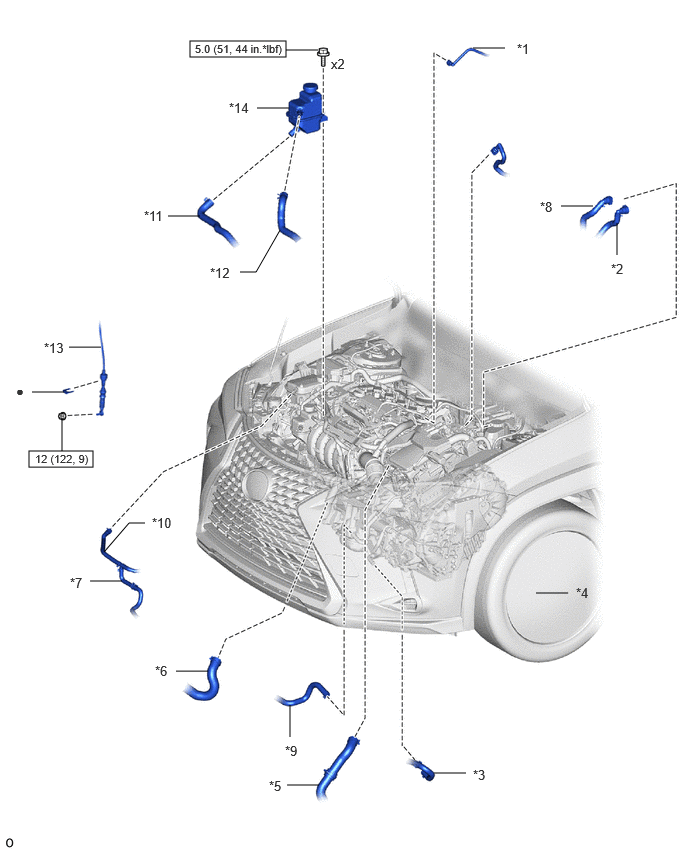

*1 FUEL TUBE SUB-ASSEMBLY *2 INLET HEATER WATER HOSE
*3 INLET HYBRID RADIATOR HOSE *4 NO. 1 FUEL VAPOR FEED HOSE
*5 NO. 1 RADIATOR HOSE *6 NO. 2 RADIATOR HOSE
*7 NO. 3 WATER BY-PASS HOSE *8 OUTLET HEATER WATER HOSE
*9 OUTLET NO. 1 HYBRID WATER PUMP HOSE *10 WATER BY-PASS HOSE
*11 NO. 5 INVERTER COOLING HOSE *12 NO. 2 INVERTER COOLING HOSE
*13 TRANSMISSION CONTROL CABLE ASSEMBLY *14 INVERTER RESERVE TANK ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 6)
GTY1084618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COLUMN HOLE COVER SILENCER SHEET *2 ENGINE MOUNTING INSULATOR LH
*3 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH *4 NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
*5 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY *6 NO. 1 SIDE RAIL REINFORCEMENT LH
*7 NO. 1 SIDE RAIL REINFORCEMENT RH *8 AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY
*9 NO. 2 EARTH WIRE *10 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
*11 NO. 2 ENGINE MOUNTING STAY LH - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Adhesive 1324 * Precoated part
Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 6)
GTY787842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMPRESSOR WITH MOTOR ASSEMBLY *2 DISCHARGE HOSE SUB-ASSEMBLY
*3 FUEL DELIVERY GUARD *4 FUEL VAPOR FEED PIPE
*5 NO. 2 FUEL VAPOR FEED PIPE *6 PURGE VALVE (PURGE VSV)
*7 SUCTION HOSE SUB-ASSEMBLY *8 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 11 or equivalent - -
Fig 6: Engine Assembly Replacement Components With Torque Specifications (6 Of 6)
GTY784418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE WIRE *2 FLYWHEEL HOUSING SIDE COVER
*3 STARTER HOLE INSULATOR *4 TRANSMISSION INPUT DAMPER ASSEMBLY
*5 HYBRID VEHICLE TRANSAXLE ASSEMBLY *6 FLYWHEEL SUB-ASSEMBLY
*7 NO. 1 CRANKSHAFT POSITION SENSOR PLATE *8 HV AIR CONDITIONING WIRE
Tightening torque for "Major areasinvolving basic vehicle performancesuch as moving/turning/stopping" :N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Adhesive 1324 • Non-reusable part
* Precoated part - -
