Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

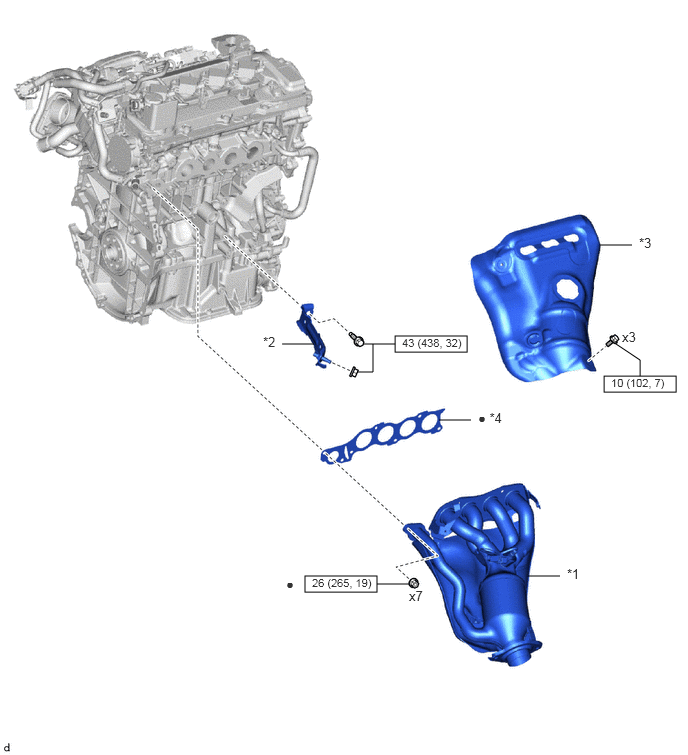

| *1 |
EXHAUST MANIFOLD (TWC: Front Catalyst) |
*2 |
MANIFOLD STAY |
| *3 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
*4 |
EXHAUST MANIFOLD TO HEAD GASKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

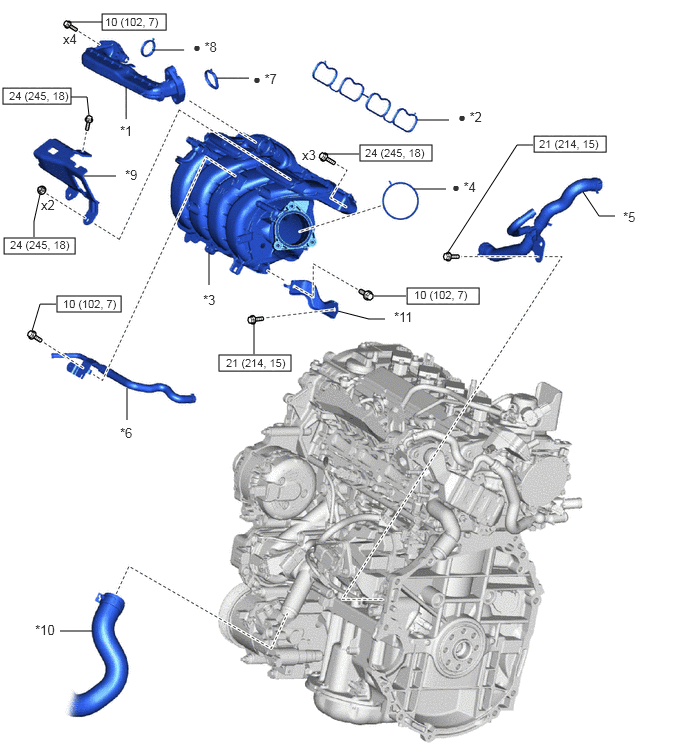

| *1 |
NO. 1 EGR PIPE SUB-ASSEMBLY |
*2 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *3 |
INTAKE MANIFOLD |
*4 |
THROTTLE BODY GASKET |
| *5 |
WATER BY-PASS HOSE ASSEMBLY |
*6 |
NO. 3 WATER BY-PASS PIPE |
| *7 |
EGR VALVE ADAPTER GASKET |
*8 |
EGR INLET GASKET |
| *9 |
NO. 2 FUEL DELIVERY GUARD |
*10 |
NO. 2 RADIATOR HOSE |
| *11 |
INTAKE MANIFOLD STAY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
NO. 5 ENGINE WIRE |
*2 |
NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 |
FUEL TUBE SUB-ASSEMBLY |
*4 |
FUEL PUMP ASSEMBLY (for High Pressure) |
| *5 |
O-RING |
*6 |
FUEL PUMP FLANGE |
| *7 |
FUEL PUMP SPACER GASKET |
*8 |
FUEL PUMP LIFTER ASSEMBLY |
| *9 |
FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY |
*10 |
PORT FUEL INJECTOR ASSEMBLY |
| *11 |
INJECTOR VIBRATION INSULATOR |
*12 |
FUEL DELIVERY PIPE |
| *13 |
NO. 3 FUEL INJECTOR BACK-UP RING |
*14 |
NO. 1 FUEL INJECTOR BACK-UP RING |
| *15 |
DIRECT FUEL INJECTOR ASSEMBLY |
*16 |
NOZZLE HOLDER CLAMP |
| *17 |
FUEL DELIVERY SPACER |
*18 |
C-RING |
| *19 |
FUEL INJECTOR SEAL |
*20 |
FUEL PIPE CLAMP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*2 |
O-RING |
| *3 |
ENGINE OIL LEVEL DIPSTICK |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

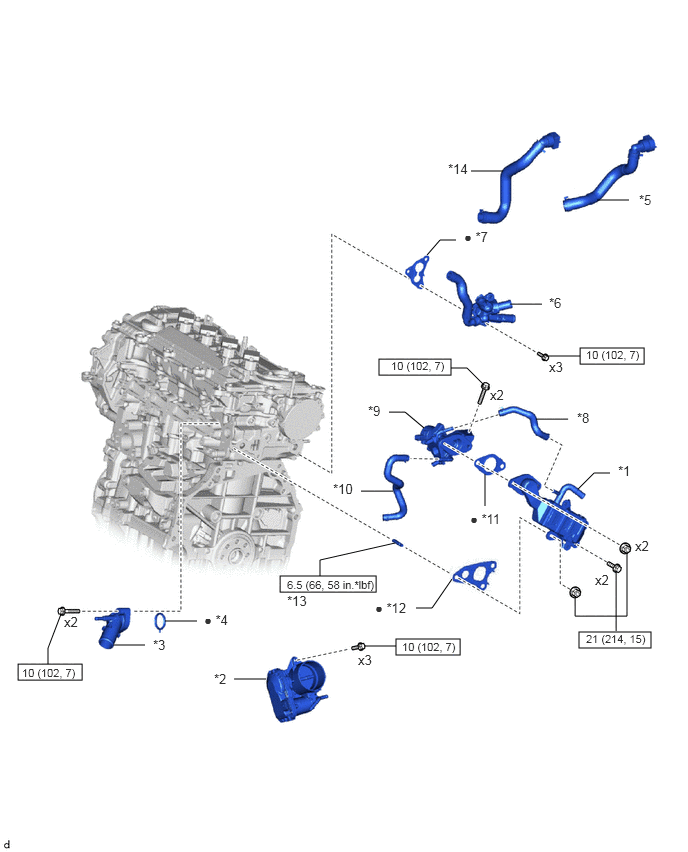

| *1 |
EGR COOLER ASSEMBLY |
*2 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
| *3 |
WATER OUTLET |
*4 |
WATER OUTLET GASKET |
| *5 |
INLET HEATER WATER HOSE |
*6 |
OUTLET WATER BY-PASS SUB-ASSEMBLY |
| *7 |
WATER PIPE OUTLET GASKET |
*8 |
NO. 4 WATER BY-PASS HOSE |
| *9 |
EGR VALVE ASSEMBLY |
*10 |
NO. 8 WATER BY-PASS HOSE |
| *11 |
EGR VALVE GASKET |
*12 |
EGR COOLER GASKET |
| *13 |
STUD BOLT |
*14 |
OUTLET HEATER WATER HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

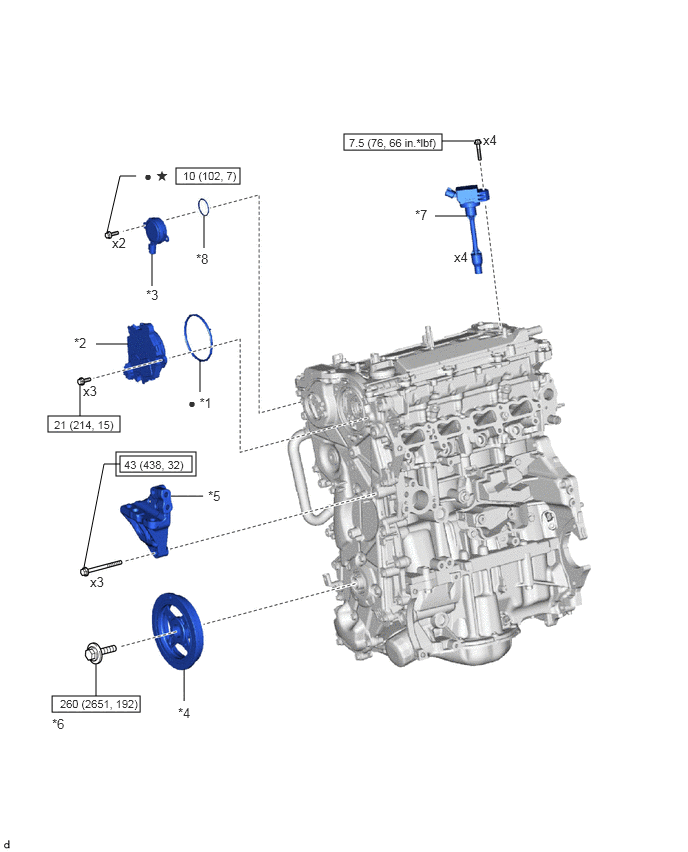

| *1 |
CAM TIMING CONTROL MOTOR O-RING |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*4 |
CRANKSHAFT PULLEY ASSEMBLY |
| *5 |
ENGINE MOUNTING BRACKET RH |
*6 |
CRANKSHAFT PULLEY SET BOLT |
| *7 |
IGNITION COIL ASSEMBLY |
*8 |
O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

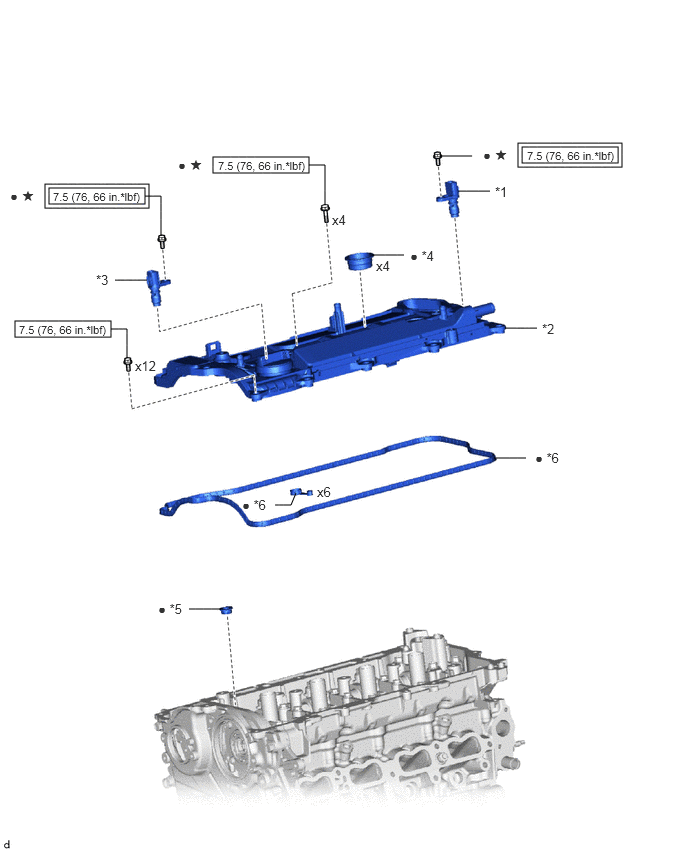

| *1 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
*2 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
| *3 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
*4 |
SPARK PLUG TUBE GASKET |
| *5 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
*6 |
CYLINDER HEAD COVER GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
*2 |
CAMSHAFT TIMING GEAR ASSEMBLY |
| *3 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
*4 |
CHAIN SUB-ASSEMBLY |
| *5 |
CHAIN TENSIONER SLIPPER |
*6 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *7 |
NO. 1 CHAIN VIBRATION DAMPER |
*8 |
OIL PUMP DRIVE CHAIN SUB-ASSEMBLY |
| *9 |
NO. 2 TIMING CHAIN COVER ASSEMBLY |
*10 |
OIL PUMP DRIVE SPROCKET |
| *11 |
OIL PUMP DRIVE SHAFT SPROCKET |
*12 |
CRANKSHAFT TIMING SPROCKET |
| *13 |
STRAIGHT SCREW PLUG |
*14 |
TIMING CHAIN COVER OIL SEAL |
| *15 |
STRAIGHT PIN |
*16 |
CRANKSHAFT TIMING GEAR KEY |
| *17 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) |
*18 |
TIMING CHAIN COVER ASSEMBLY |
| *19 |
STUD BOLT |
*20 |
CHAIN DAMPER SPRING |
| *21 |
CHAIN TENSIONER PLATE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
MP grease |
 |
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

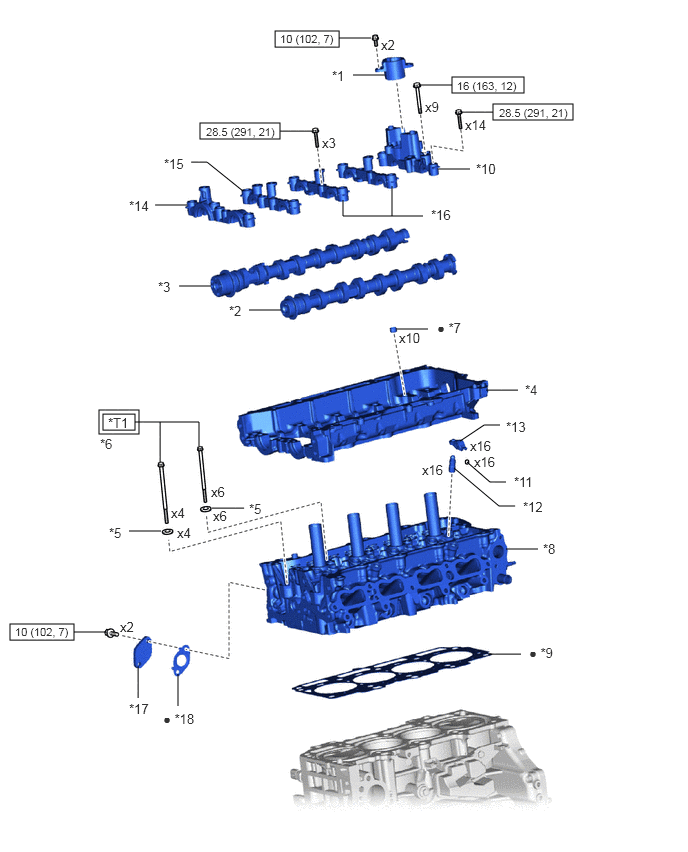

| *1 |
FUEL PUMP LIFTER GUIDE |
*2 |
INTAKE CAMSHAFT SUB-ASSEMBLY |
| *3 |
EXHAUST CAMSHAFT SUB-ASSEMBLY |
*4 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
| *5 |
PLATE WASHER |
*6 |
CYLINDER HEAD SET BOLT |
| *7 |
CAMSHAFT BEARING CAP SETTING RING PIN |
*8 |
CYLINDER HEAD SUB-ASSEMBLY |
| *9 |
CYLINDER HEAD GASKET |
*10 |
NO. 4 CAMSHAFT BEARING CAP |
| *11 |
VALVE STEM CAP |
*12 |
VALVE LASH ADJUSTER ASSEMBLY |
| *13 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
*14 |
NO. 1 CAMSHAFT BEARING CAP |
| *15 |
NO. 2 CAMSHAFT BEARING CAP |
*16 |
NO. 3 CAMSHAFT BEARING CAP |
| *17 |
WATER SEAL PLATE |
*18 |
GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
| *T1 |
1st: 50 (510, 37)
2nd: Turn 90°
3rd: Turn 90° |
- |
- |
