Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
NO. 2 FUEL VAPOR FEED PIPE |
*2 |
PURGE VALVE (PURGE VSV) |
| *3 |
FUEL VAPOR FEED PIPE |
*4 |
ENGINE WIRE |
| *5 |
NO. 1 FUEL VAPOR FEED HOSE |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
IGNITION COIL ASSEMBLY |
*2 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
| *3 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
*4 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
| *5 |
SPARK PLUG TUBE GASKET |
*6 |
CAMSHAFT POSITION SENSOR (forIntake Side) |
| *7 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
*8 |
CYLINDER HEAD COVER GASKET |
| *9 |
CAM TIMING CONTROL MOTOR O-RING |
*10 |
O-RING |
| *11 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

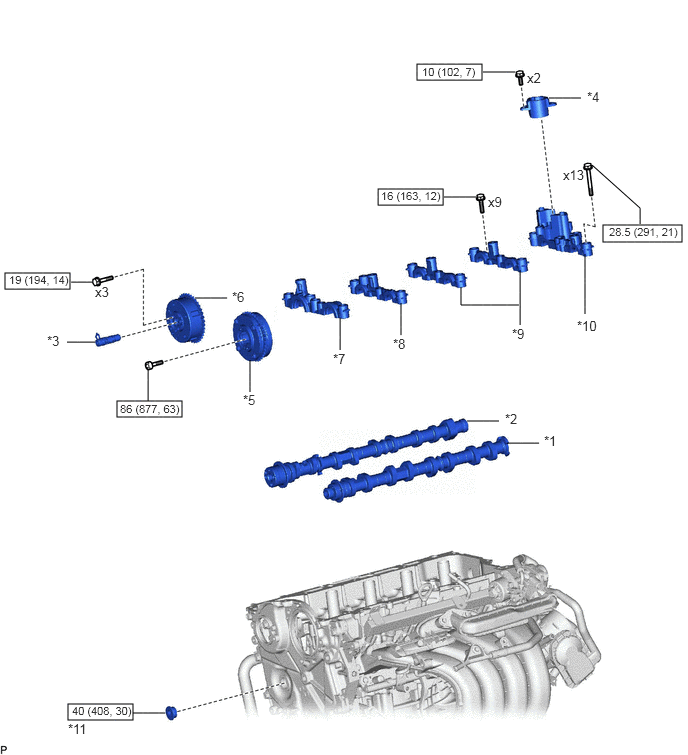

| *1 |
INTAKE CAMSHAFT SUB-ASSEMBLY |
*2 |
EXHAUST CAMSHAFT SUB-ASSEMBLY |
| *3 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) |
*4 |
FUEL PUMP LIFTER GUIDE |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *7 |
NO. 1 CAMSHAFT BEARING CAP |
*8 |
NO. 2 CAMSHAFT BEARING CAP |
| *9 |
NO. 3 CAMSHAFT BEARING CAP |
*10 |
NO. 4 CAMSHAFT BEARING CAP |
| *11 |
STRAIGHT SCREW PLUG |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
