Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

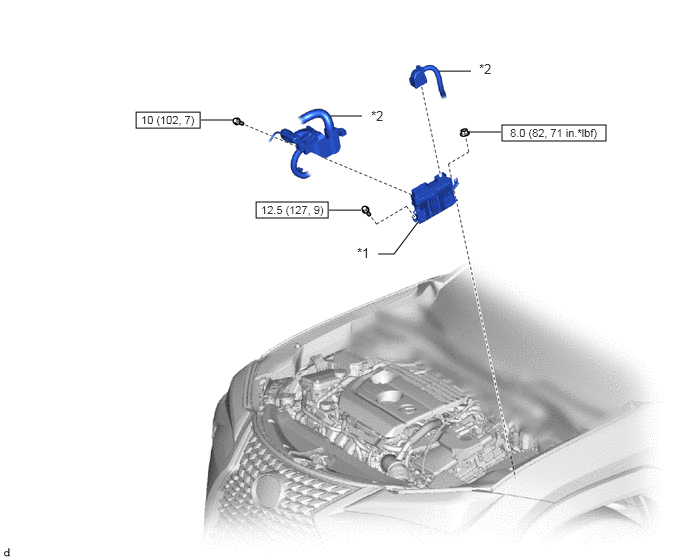

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)
GTY813488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 ENGINE WIRE
N*m (kgf*cm, ft.*lbf): Specified torque - -

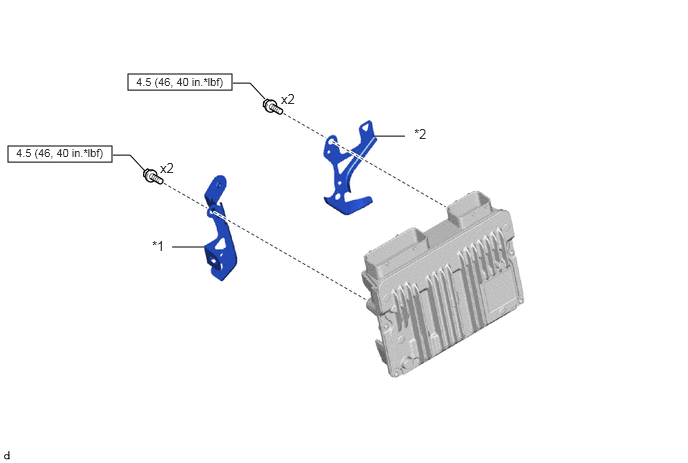

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)
GTY782263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ECM BRACKET *2 NO. 2 ECM BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -
