Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

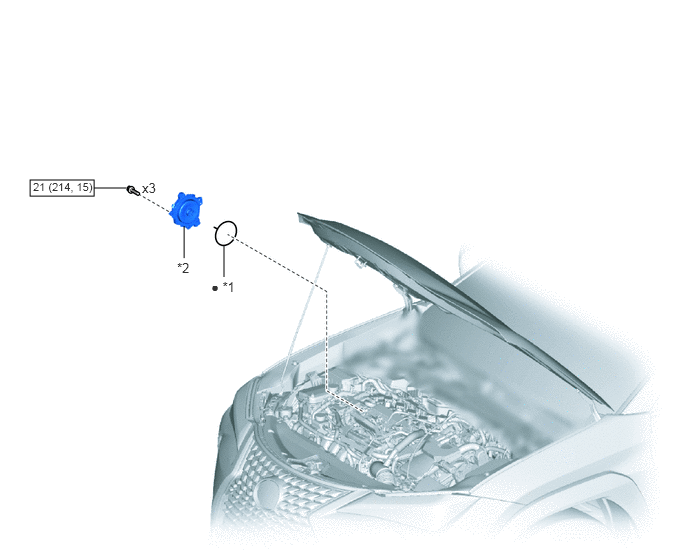

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications
GTY782111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAM TIMING CONTROL MOTOR O-RING *2 CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
