Removal [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FLOOR CENTER BRACE
    1. Remove the 4 bolts and front floor center brace from the vehicle body.
      GTY837039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Disengage the guide to disconnect the wire harness from the wire harness clamp bracket.
      GTY819596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the wire harness clamp bracket from the No. 2 air fuel ratio sensor.
  3. REMOVE NO. 2 AIR FUEL RATIO SENSOR
    1. Disconnect the No. 2 air fuel ratio sensor connector.
      GTY819595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.

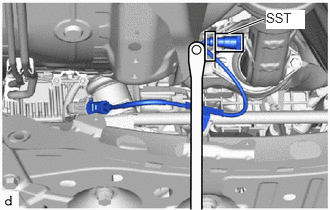

    3. Using SST, remove the No. 2 air fuel ratio sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY800656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00012
      NOTE:

      If the No. 2 air fuel ratio sensor has been struck or dropped, replace it.
