Operation not Accepted Even If Air Conditioning Switch is Operated [10/2018 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Air Conditioner / Trouble Codes.
- Check for DTCs.
Body Electrical > Air Conditioner > Trouble Codes
Result
Result Proceed to B14B2 is not output A B14B2 is output B
Result:
B
GO TO DTC B14B2. Refer to DTC B14B2: Lost Communication with Front Panel LIN [10/2018 - 07/2022] , or refer to DTC B14B2: Lost Communication with Front Panel LIN [07/2022 - ]
Result:
A
See step 2
- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - POWER SOURCE AND BODY GROUND)

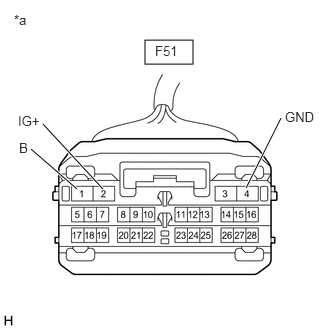

*a Front view of wire harness connector
(to Air Conditioning Amplifier Assembly)- Disconnect the air conditioning amplifier assembly connector.
- Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition F51-1 (B) - Body ground Power switch off 11 to 14 V F51-2 (IG+) - Body ground Power switch ON (IG) 11 to 14 V Power switch off Below 1 V Standard Resistance
Tester Connection Condition Specified Condition F51-4 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to REMOVAL [10/2018 - 07/2022] , or refer to REMOVAL [07/2022 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
