Removal [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [07/2022 - ]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [07/2022 - ]

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 12

  5. REMOVE LUGGAGE ROOM REAR COVER
    1. Remove the clip.

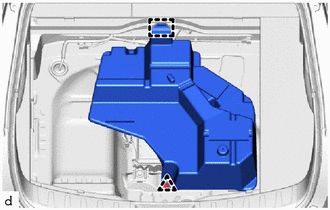

      GTY798112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the luggage room rear cover.
  6. REMOVE INVERTER TERMINAL COVER
    1. Remove the 5 bolts and inverter terminal cover from the rear hybrid motor control inverter assembly.

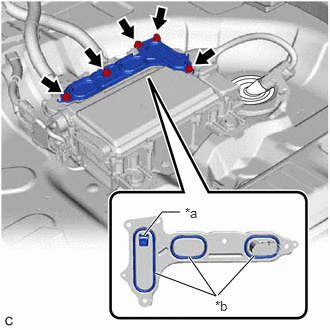

      GTY833772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Interlock
      *b Waterproof Seal
      NOTE:
      • Make sure to pull the inverter terminal cover straight out, as a connector is connected to the inside of the inverter terminal cover.
      • Do not touch the waterproof seal of the inverter terminal cover.
      • Do not allow any foreign matter or water to enter the rear hybrid motor control inverter assembly.
      • Make sure that the interlock is installed to the inverter terminal cover.
  7. CHECK TERMINAL VOLTAGE
    WARNING:

    Wear insulated gloves.

    NOTE:
    • Do not allow any foreign matter or water to enter the rear hybrid motor control inverter assembly.
    • Do not use A terminal for measurement.
    1. Using a voltmeter, measure the voltage between the terminals of the 2 phase connectors.

      Standard Voltage

      0 V

      HINT:

      Use a measuring range of DC 750 V or more on the voltmeter.

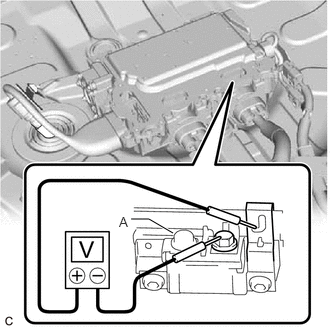

      GTY810110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Wear insulated gloves.

    1. Using an insulated tool, remove the 4 bolts and disconnect the HV floor under wire from the rear hybrid motor control inverter assembly.

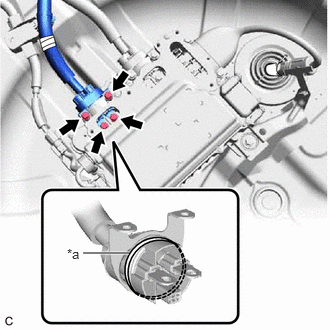

      GTY807260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
      NOTE:
      • Do not allow any foreign matter or water to enter the rear hybrid motor control inverter assembly.
      • Do not touch the waterproof seal or terminals of the HV floor under wire.
      • Do not damage the terminals, connector housing or rear hybrid motor control inverter assembly during disconnection.
      • Insulate the disconnected terminals with insulating tape.
  9. DISCONNECT HV BATTERY PACK WIRE
    WARNING:

    Wear insulated gloves.

    1. Using an insulated tool, remove the 4 bolts and disconnect the HV battery pack wire from the rear hybrid motor control inverter assembly.

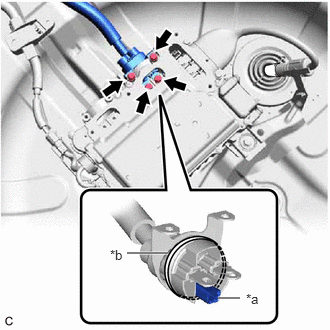

      GTY835704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Interlock
      *b Waterproof Seal
      NOTE:
      • Do not allow any foreign matter or water to enter the rear hybrid motor control inverter assembly.
      • Do not touch the waterproof seal or terminals of theHV battery pack wire.
      • Do not damage the terminals, connector housing or rear hybrid motor control inverter assembly during disconnection.
      • Insulate the disconnected terminals with insulating tape.
      • Make sure to pull the HV battery pack wire straight out, as a connector is connected to the inside of the inverter terminal cover.
  10. DISCONNECT REAR TRACTION MOTOR CABLE
    WARNING:

    Wear insulated gloves.

    1. Using an insulated tool, remove the 5 bolts and disconnect the rear traction motor cable from the rear hybrid motor control inverter assembly.

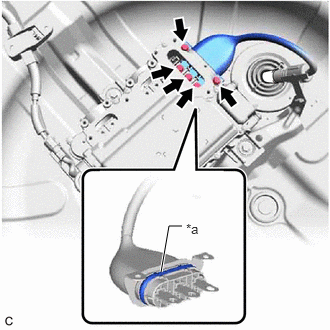

      GTY787953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
      NOTE:
      • Do not allow any foreign matter or water to enter the rear hybrid motor control inverter assembly.
      • Do not touch the waterproof seal or terminals of the rear traction motor cable.
      • Do not damage the terminals, connector housing or rear hybrid motor control inverter assembly during disconnection.
      • Insulate the disconnected terminals with insulating tape.
      • Make sure to pull the rear traction motor cable out, as a connector is connected to the inside of the inverter terminal cover.
  11. TEMPORARILY TIGHTEN INVERTER TERMINAL COVER
    WARNING:

    Wear insulated gloves.

    1. Temporarily install the inverter terminal cover with the 5 bolts.

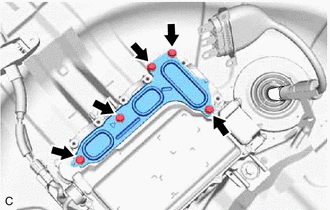

      GTY808230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the waterproof seal of the inverter terminal cover.

  12. REMOVE REAR HYBRID MOTOR CONTROL INVERTER ASSEMBLY
    WARNING:

    Wear insulated gloves.

    1. Disconnect the 2 rear hybrid motor control inverter assembly connectors.
      NOTE:
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or rear hybrid motor control inverter assembly during disconnection.
      • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
      • Do not allow any foreign matter or water to enter therear hybrid motor control inverter assembly.
      • Insulate the disconnected terminals with insulating tape.
      • To prevent damage due to staticelectricity, do not touch the terminals of the disconnected connectors.

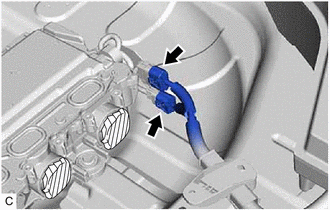

      GTY834521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and rear hybrid motor control inverter assembly.

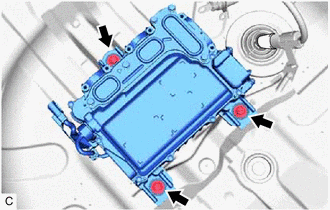

      GTY808223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not damage the terminals, connector housing or rear hybrid motor control inverter assembly during disconnection.
      • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
      • Do not allow any foreign matter or water to enter the rear hybrid motor control inverter assembly.
      • Insulate the disconnected terminals with insulating tape.
      • To prevent damage due to staticelectricity, do not touch the terminals of the disconnected connectors.
  13. REMOVE HV INVERTER COOLING COVER
    WARNING:

    Wear insulated gloves.

    HINT:

    Perform this procedure only when replacement of the HV inverter cooling fan is necessary.

    1. Using a T25 "TORX" socket wrench, remove the 4 bolts and HV inverter cooling cover from the rear hybrid motor control inverter assembly.

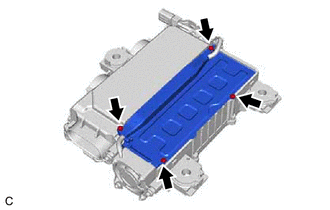

      GTY808220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE HV INVERTER COOLING FAN
    WARNING:

    Wear insulated gloves.

    HINT:

    Perform this procedure only when replacement of the HV inverter cooling fan is necessary.

    1. Disconnect the rear hybrid motor control inverter assembly.

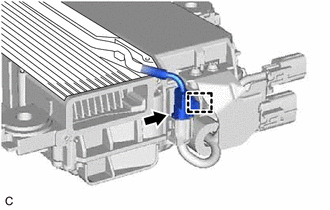

      GTY808219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disengage the 2 guides.

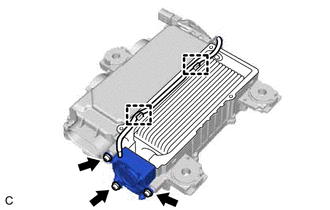

      GTY808226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a T20 "TORX" socket wrench, remove the 3 bolts and HV inverter cooling fan from the rear hybrid motor control inverter assembly.
