Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Inverter Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SERVICE PLUG GRIP

BATTERY SERVICE HOLE COVER

Fig 2: Rear Inverter Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DECK BOARD ASSEMBLY	*2	REAR DECK FLOOR BOX
*3	LUGGAGE ROOM REAR COVER	-	-

Fig 3: Rear Inverter Replacement Components With Torque Specifications (3 Of 4)

*1	HV BATTERY PACK WIRE	*2	INVERTER TERMINAL COVER
*3	HV FLOOR UNDER WIRE	*4	REAR HYBRID MOTOR CONTROL INVERTER ASSEMBLY
*5	REAR TRACTION MOTOR CABLE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

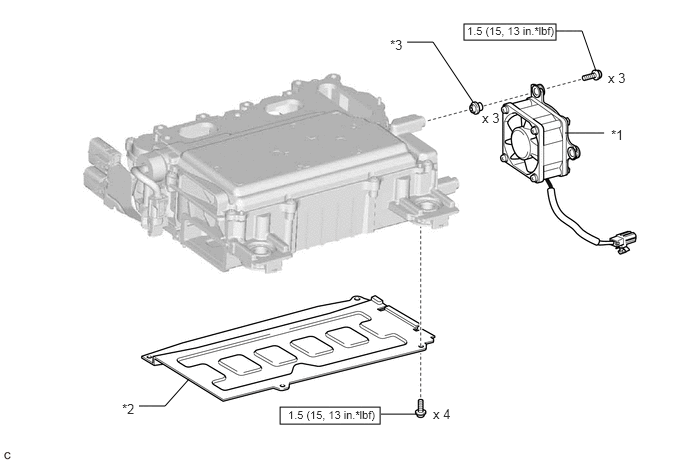

Fig 4: Rear Inverter Replacement Components With Torque Specifications (4 Of 4)

*1	HV INVERTER COOLING FAN	*2	HV INVERTER COOLING COVER
*3	Collar	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
