Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
SERVICE PLUG GRIP |
*2 |
BATTERY SERVICE HOLE COVER |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

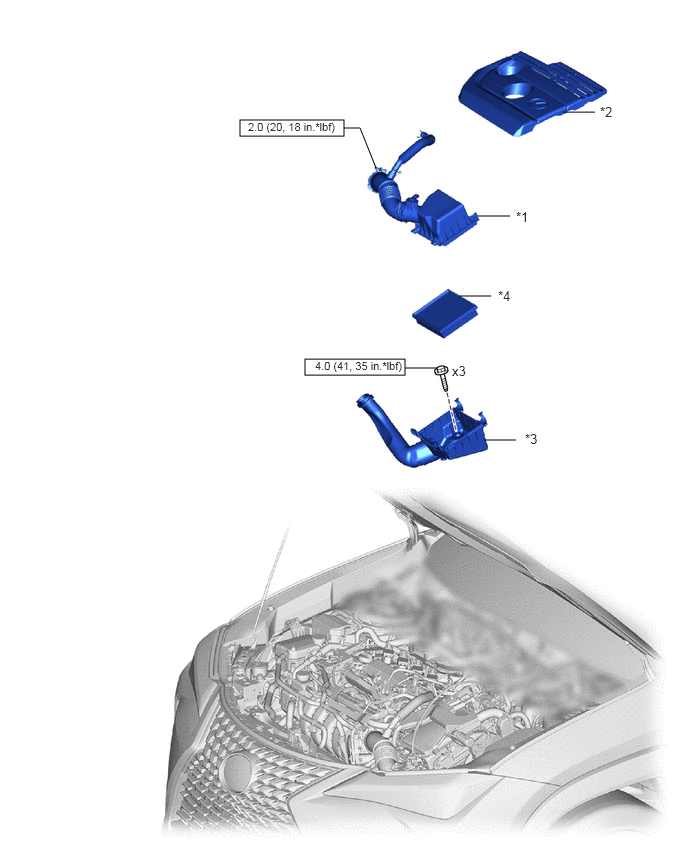

| *1 |
AIR CLEANER CAP WITH AIR CLEANER HOSE |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 |
AIR CLEANER CASE SUB-ASSEMBLY |
*4 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
HV AIR CONDITIONING WIRE |
*2 |
INVERTER COVER |
| *3 |
INVERTER WITH CONVERTER ASSEMBLY |
*4 |
OUTLET NO. 1 INVERTER COOLING HOSE |
| *5 |
INLET NO. 1 INVERTER COOLING HOSE |
*6 |
ENGINE WIRE |
| *7 |
ENGINE WIRE |
*8 |
CONNECTOR COVER ASSEMBLY |
| *9 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
*10 |
HV FLOOR UNDER WIRE |
| *11 |
MOTOR CABLE |
*12 |
WIRE HARNESS CLAMP BRACKET |
| *13 |
INVERTER PROTECTOR |
*14 |
NO. 1 RELAY BLOCK COVER |
| *15 |
AIR CLEANER BRACKET |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

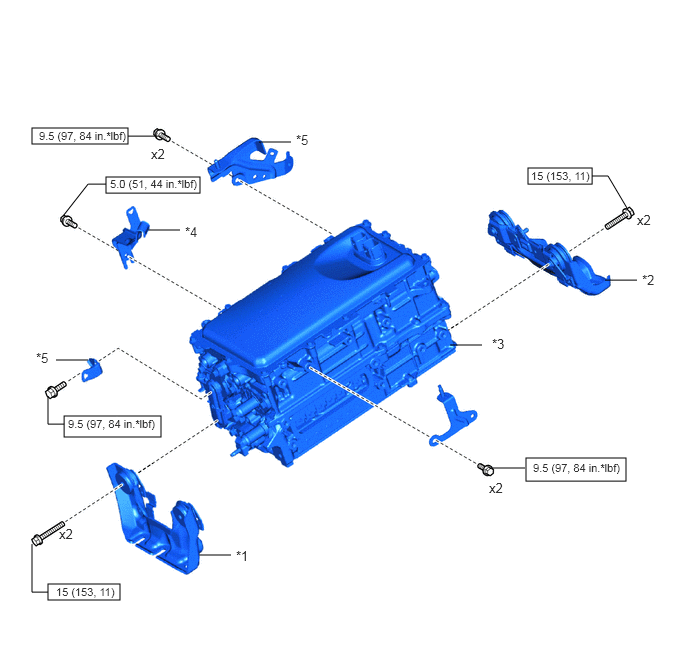

| *1 |
NO. 1 INVERTER BRACKET |
*2 |
NO. 2 INVERTER BRACKET |
| *3 |
INVERTER WITH CONVERTER ASSEMBLY |
*4 |
TRANSMISSION CONTROL CABLE SUPPORT |
| *5 |
WIRE HARNESS CLAMP BRACKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
