Components [10/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

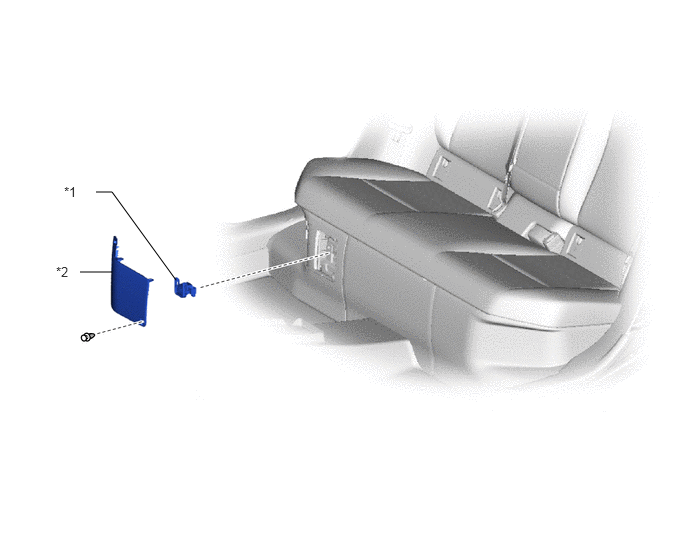

Fig 1: HV Battery Replacement Components (1 Of 6)
GTY827545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SERVICE PLUG GRIP *2 BATTERY SERVICE HOLE COVER

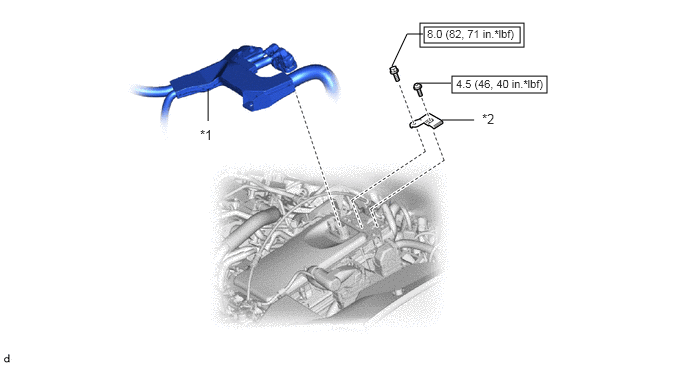

Fig 2: HV Battery Replacement Components With Torque Specifications (2 Of 6)
GTY784806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE WIRE *2 CONNECTOR COVER ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque

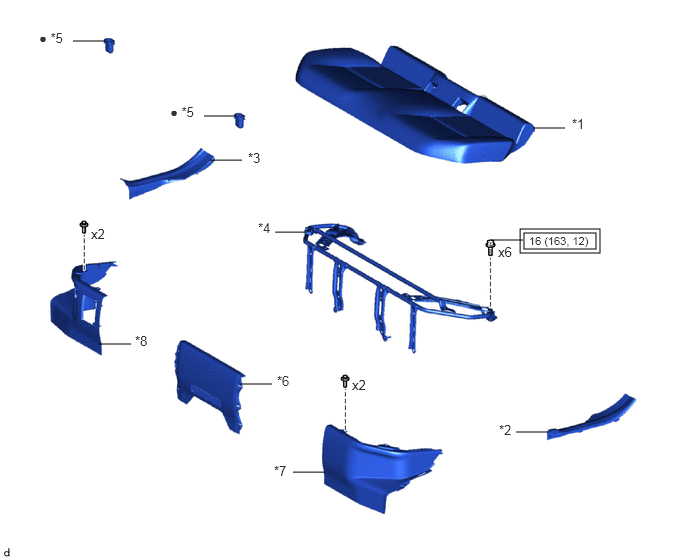

Fig 3: HV Battery Replacement Components With Torque Specifications (3 Of 6)
GTY837559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BENCH TYPE REAR SEAT CUSHION ASSEMBLY *2 REAR DOOR SCUFF PLATE LH
*3 REAR DOOR SCUFF PLATE RH *4 REAR SEAT CUSHION LEG SUB-ASSEMBLY
*5 REAR SEAT CUSHION LOCK HOOK *6 REAR UNDER COVER
*7 REAR UNDER SIDE COVER LH *8 REAR UNDER SIDE COVER RH
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) • Non-reusable part

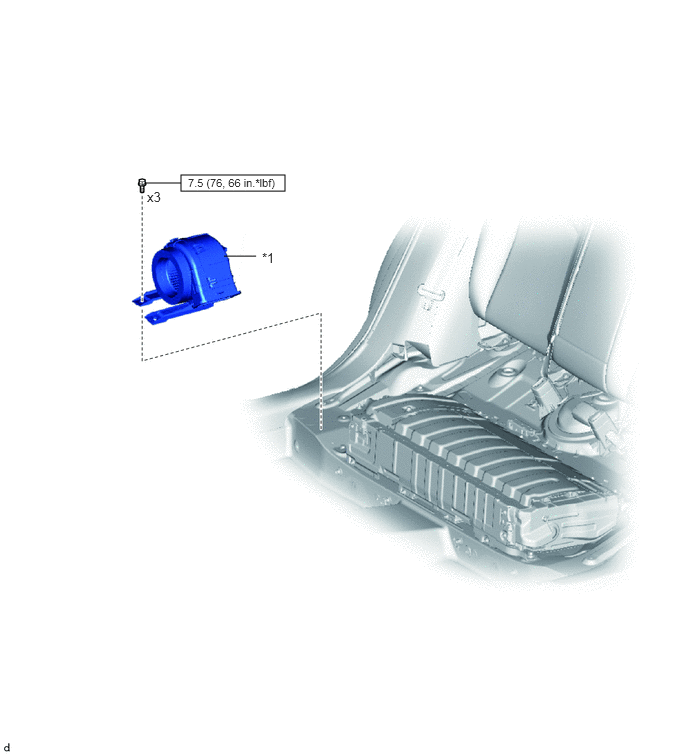

Fig 4: HV Battery Replacement Components With Torque Specifications (4 Of 6)
GTY791484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BATTERY COOLING BLOWER ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

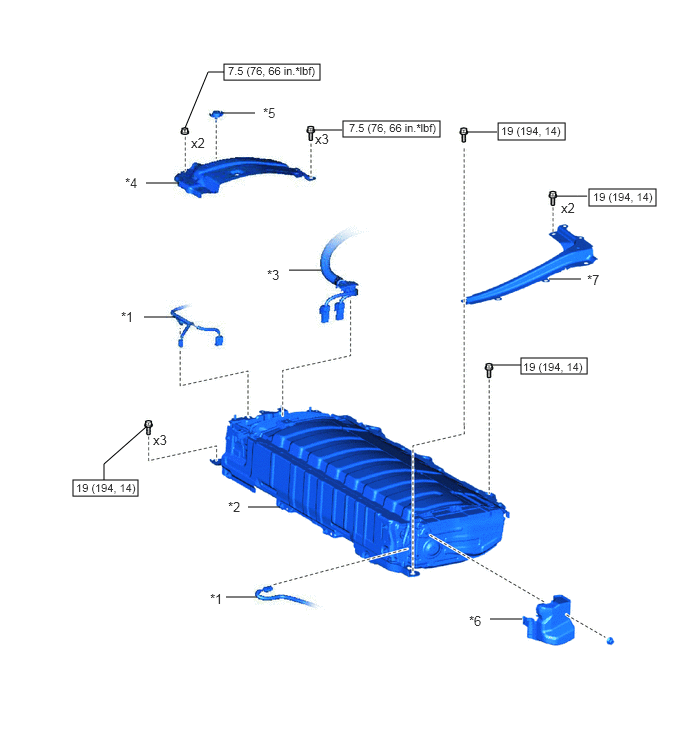

Fig 5: HV Battery Replacement Components With Torque Specifications (5 Of 6)
GTY811589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FLOOR WIRE *2 HV BATTERY
*3 HV FLOOR UNDER WIRE *4 NO. 1 HV BATTERY COVER PANEL RH
*5 BATTERY COVER LOCK STRIKER *6 NO. 1 HV BATTERY PROTECTOR
*7 REAR FLOOR SIDE RAIL SUB-ASSEMBLY LH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

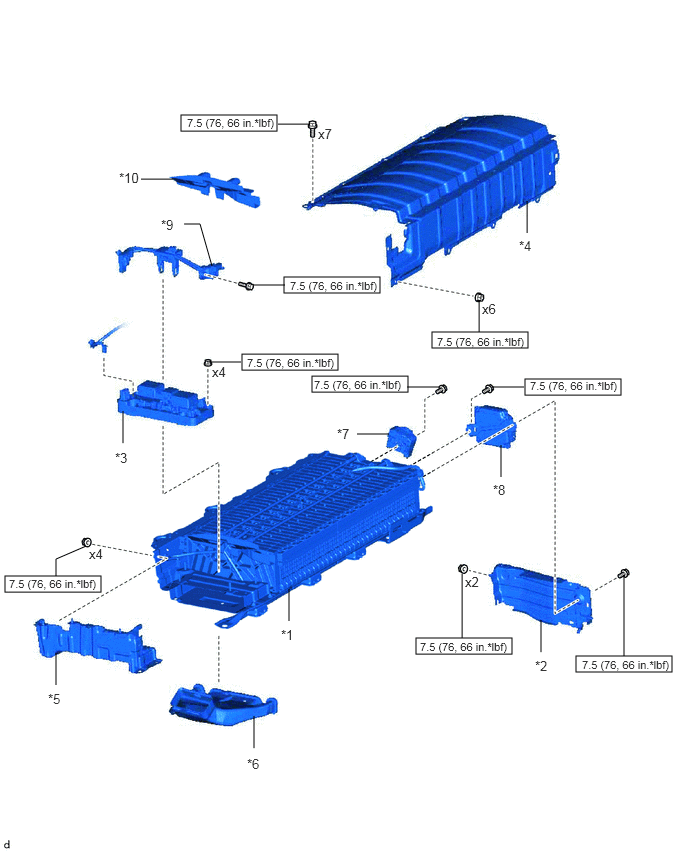

Fig 6: HV Battery Replacement Components With Torque Specifications (6 Of 6)
GTY781407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HV BATTERY *2 NO. 1 HV BATTERY SHIELD PANEL
*3 HV BATTERY JUNCTION BLOCK ASSEMBLY *4 UPPER NO. 1 HYBRID BATTERY COVER SUB-ASSEMBLY
*5 NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY *6 NO. 1 HYBRID BATTERY INTAKE DUCT
*7 HYBRID BATTERY TERMINAL BLOCK *8 BATTERY VOLTAGE SENSOR
*9 ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY *10 NO. 1 HYBRID BATTERY PACKING
N*m (kgf*cm, ft.*lbf): Specified torque - -
