Components [10/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

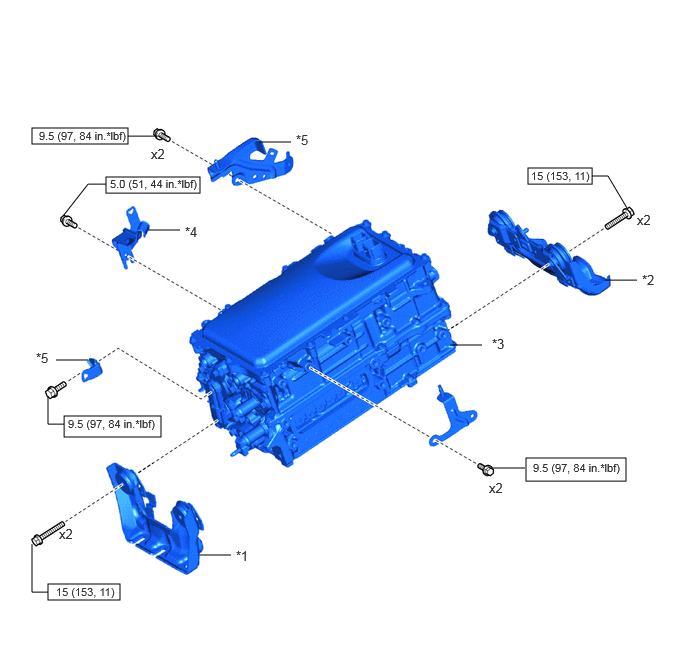

| *1 |
NO. 1 INVERTER BRACKET |
*2 |
NO. 2 INVERTER BRACKET |
| *3 |
INVERTER WITH CONVERTER ASSEMBLY |
*4 |
TRANSMISSION CONTROL CABLE SUPPORT |
| *5 |
WIRE HARNESS CLAMP BRACKET |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
O-RING |
*2 |
CONNECTOR |
| *3 |
HV CONVERTER KIT |
*4 |
CONVERTER COVER |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non - reusable part |
